Comfort Thermally Broken Sliding Window
The Comfort Thermally Broken Sliding Window combines refined design with high‑performance thermal engineering to deliver comfort, durability, and clean architectural lines.
Key Features
- Exclusive handle located on the lock stile for ease of access and cleaner lines
- An internally concealed weather flap also reduces air and water infiltration and minimises insect intrusion through the drain holes
- There is also a range of attractive interlock options to meet a wide variety of wind load requirements, up to the most demanding weather conditions
-

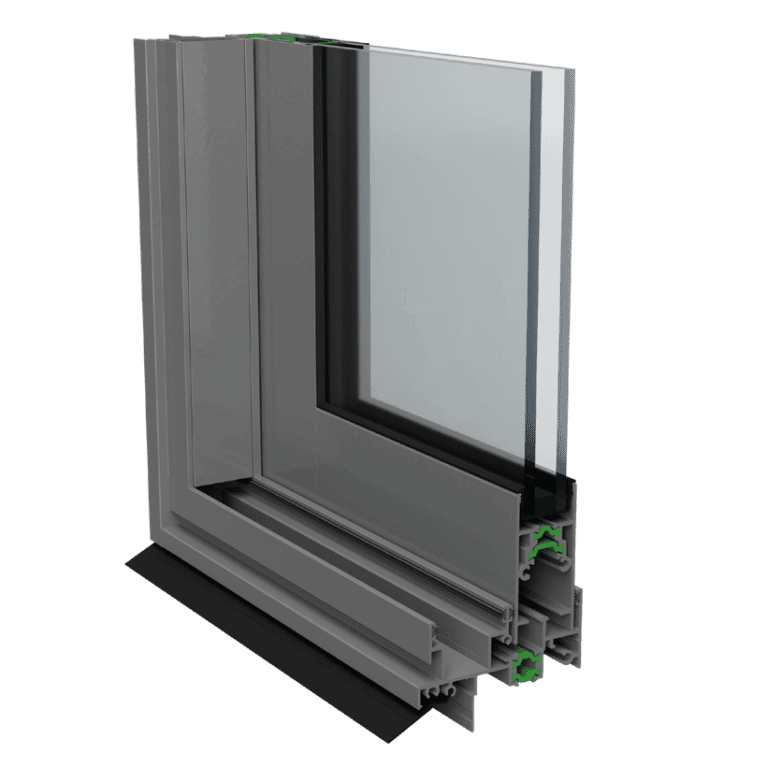

Utilises a strong ‘Double Strut’ thermal break construction for maximum strength in the sash
-
Excellent ‘Uw’ values down as low as 2.5 W/m2-K
-
Integrated screening options available
-
Sash features internal and external weather seals for maximum performance
Brochures

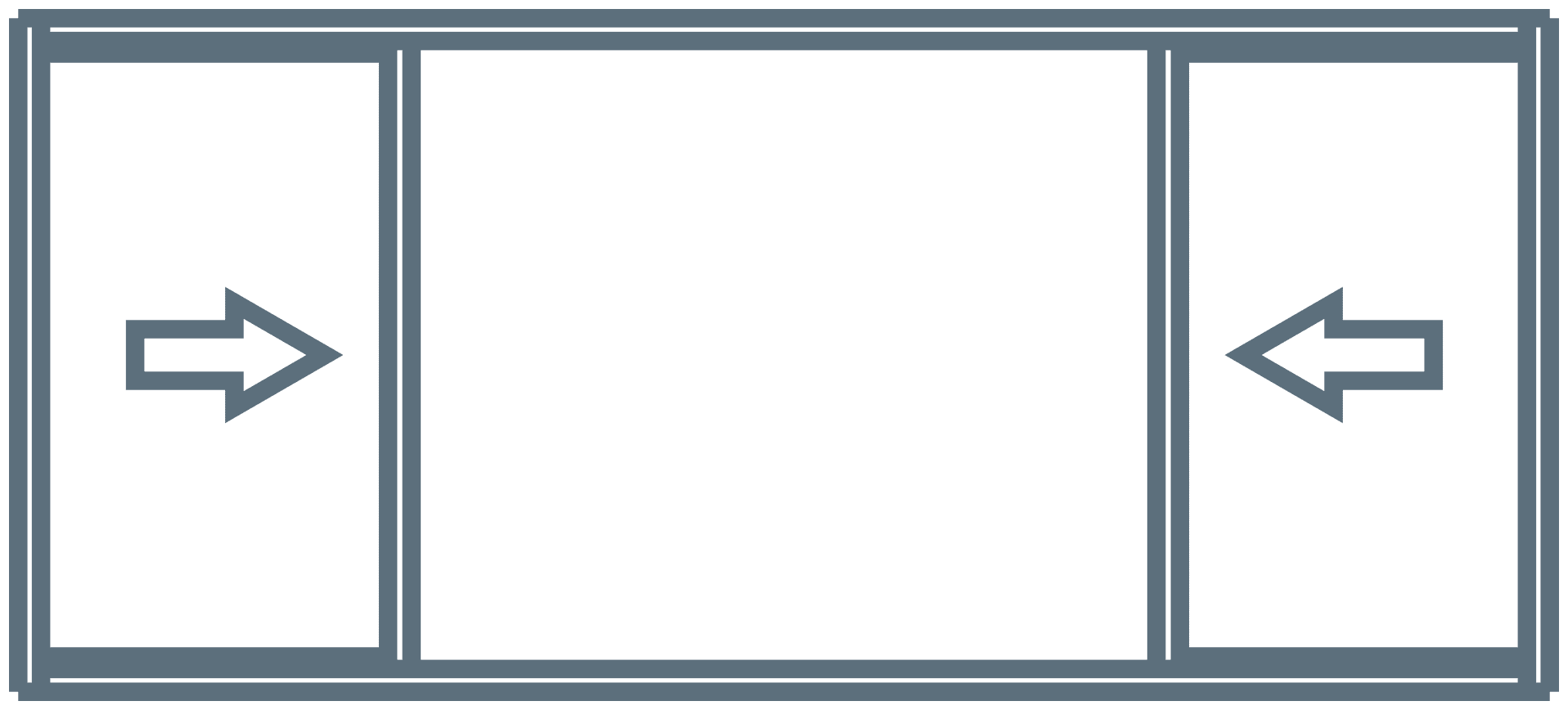

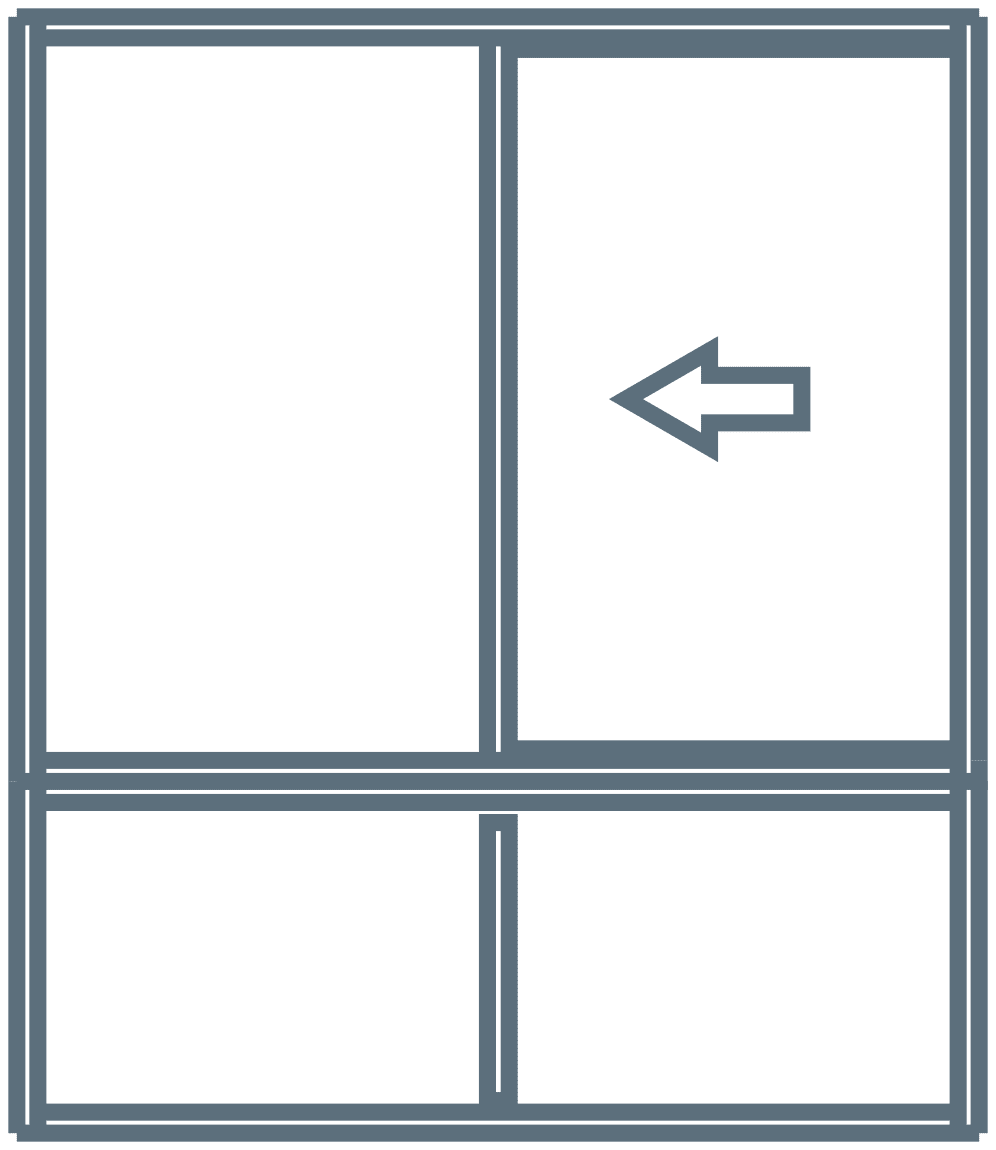

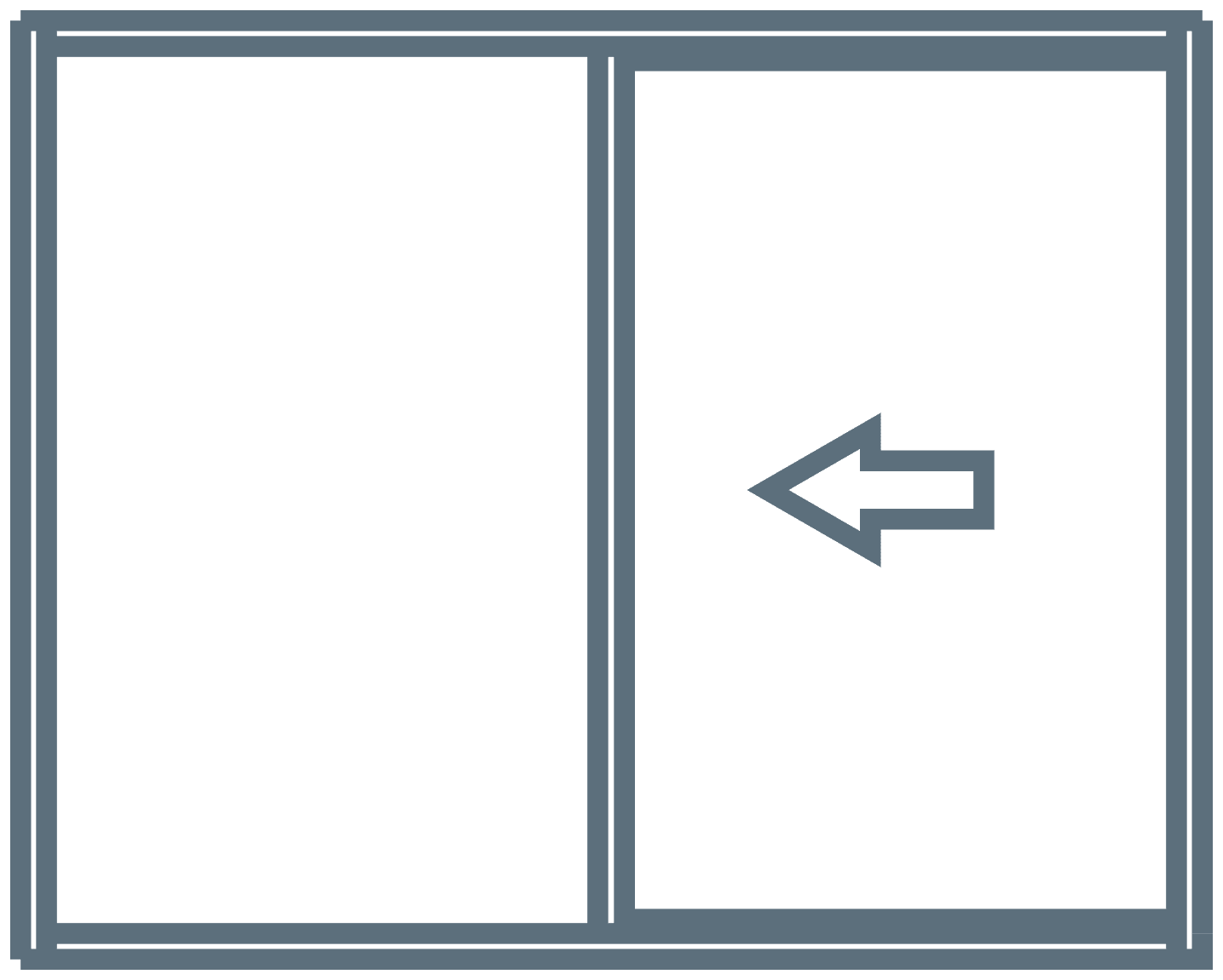

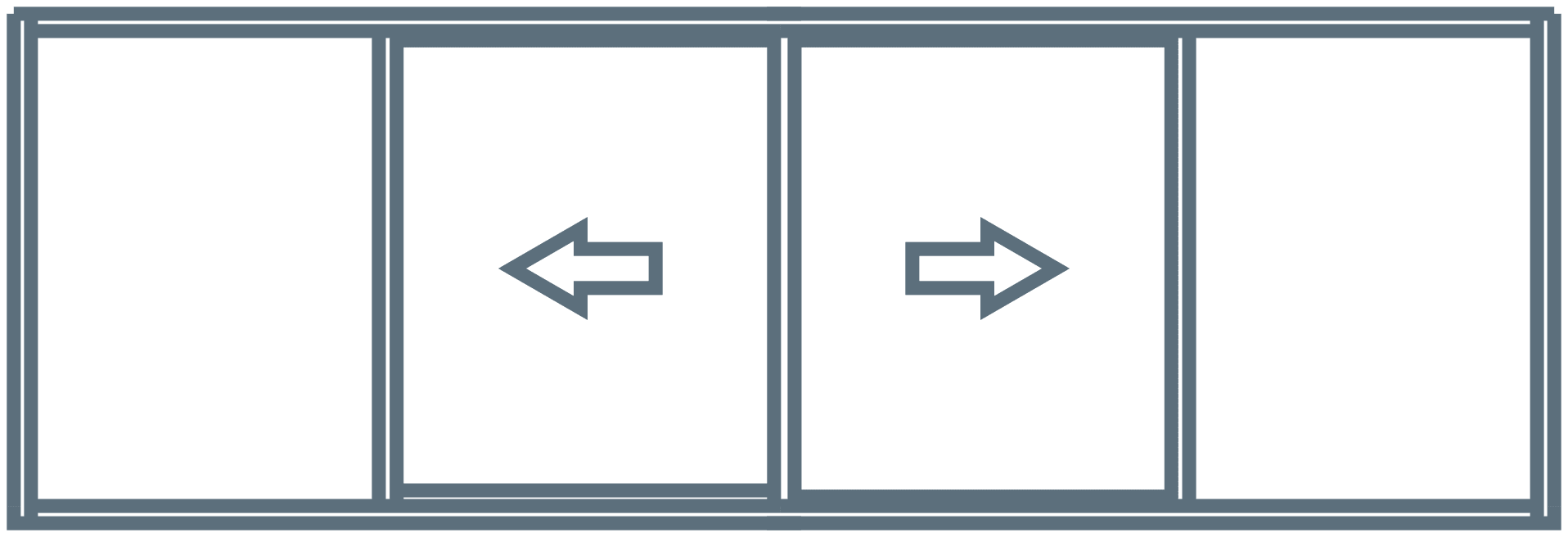

Typical Configurations
WERS Ratings
Specifications
Frame dimensions
- Option 1: 92 x 40mm
Glazing Details
- Double Glazed: 20 – 24mm
Maximum Recommended Sizes
- Sash Height: 1800mm
- Sash Width: 1200mm
- Weight: 300kg
Maximum Product Performance
- SLS (Pa): 800 Pa
- ULS (Pa): 2000 Pa
- Water (Pa): 250 Pa
Thermal Performance
- Uw range DG: 2.5 – 3.5 W/m2-K
- SHGC range DG: 0.16-0.51

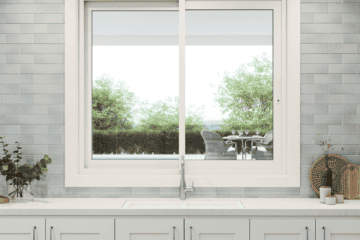

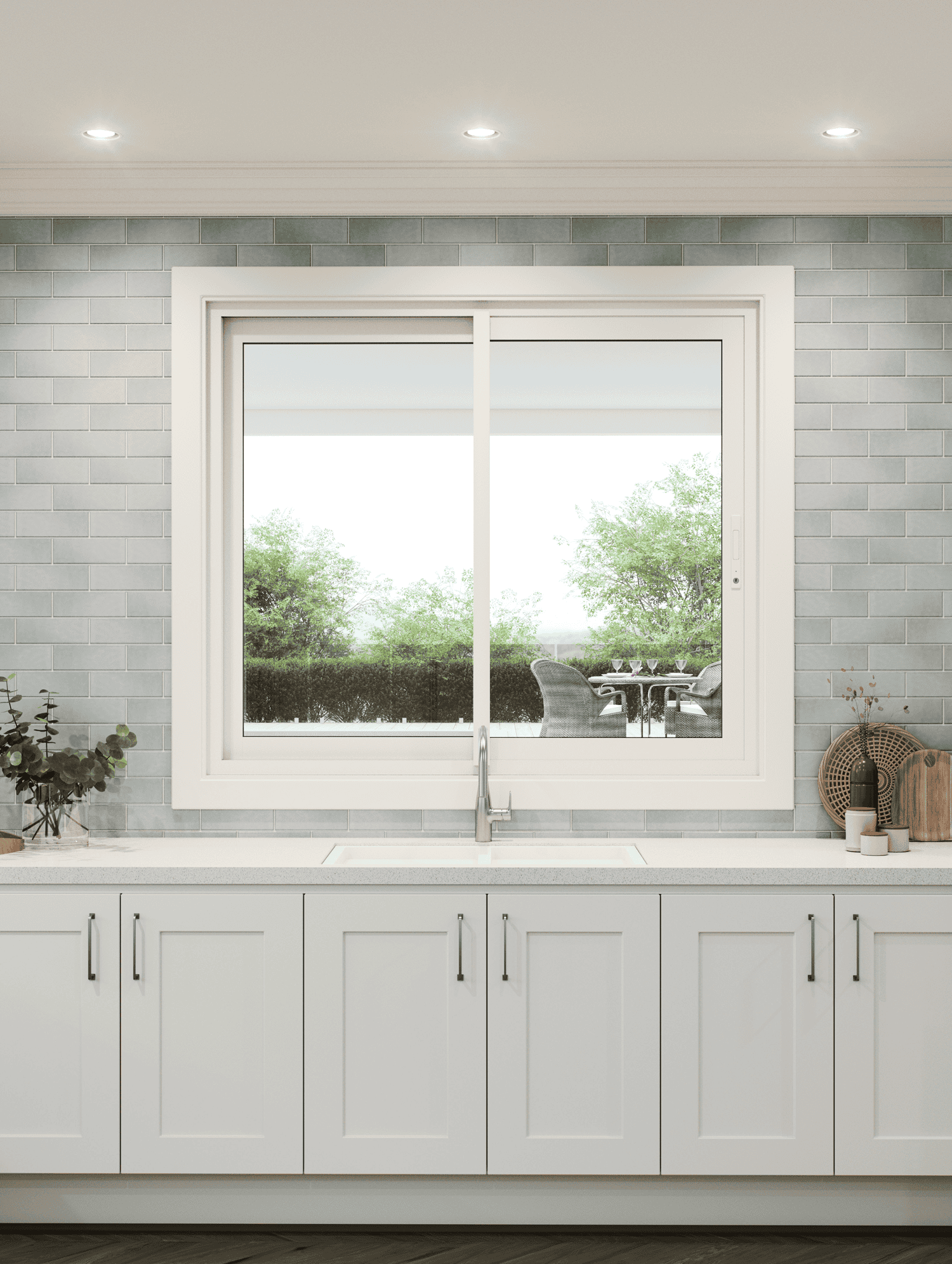

Gallery
