Hunter Evo 150mm Double Flush Glazed Framing

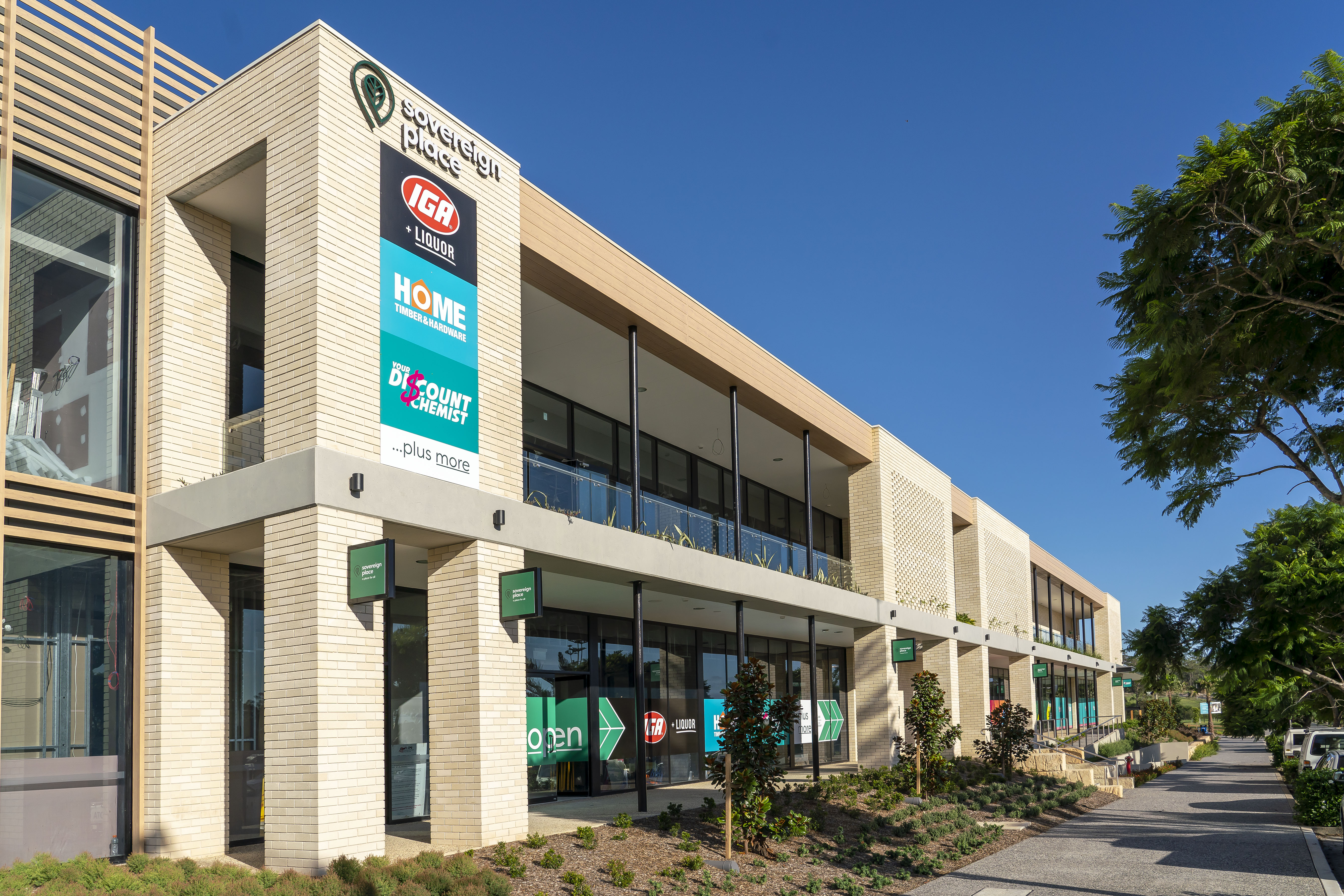

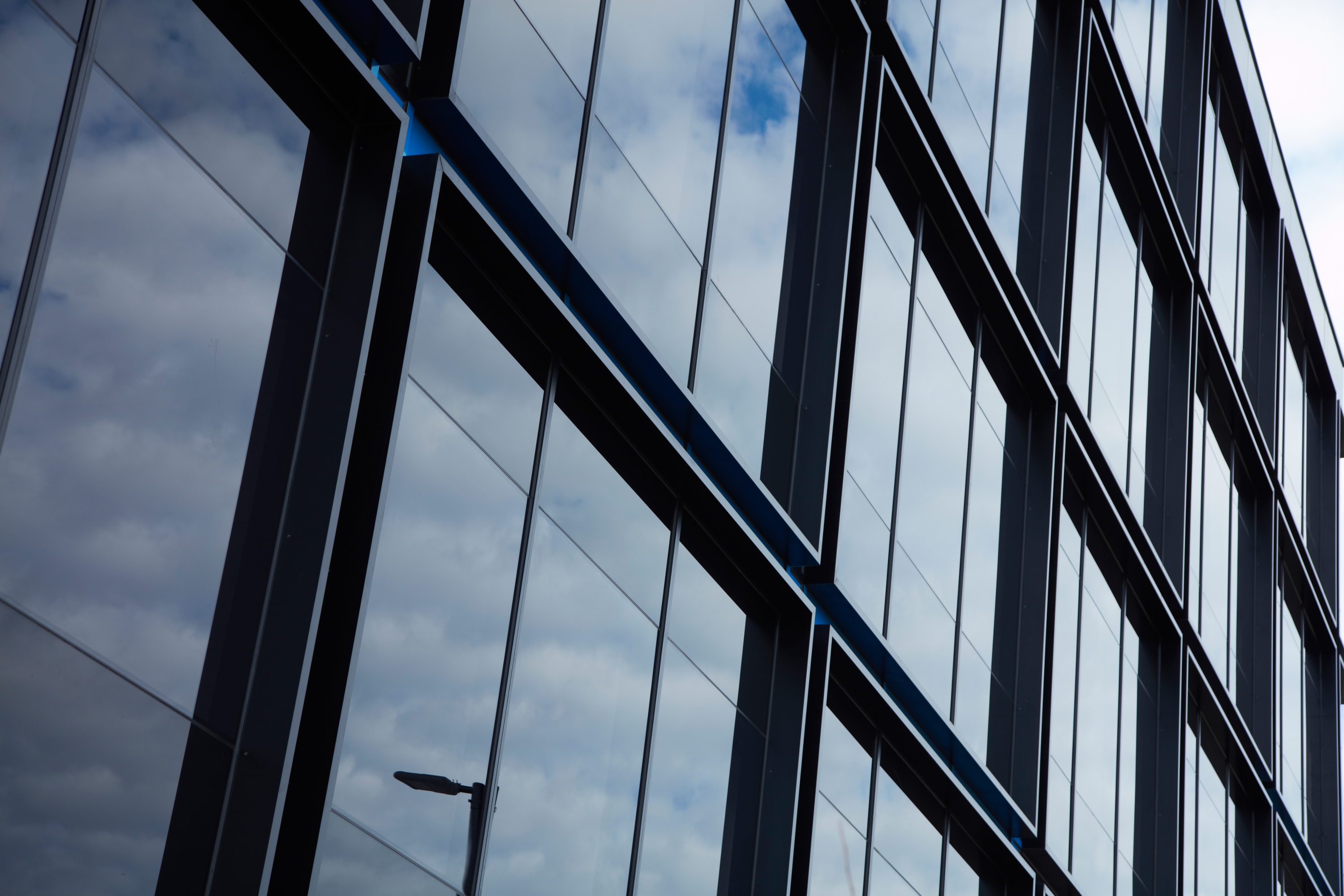

The most versatile and flexible of the Alspec® Commercial Framing Systems, it is available in a frame depth of 150mm x 50mm and is ideal for shopfronts and low-rise curtain wall applications.

DOWNLOAD BROCHURE WERS Rating

Tested and Compliant Solutions

BAL40

Cyclonic

Acoustics Compliant

AS2047 Compliant

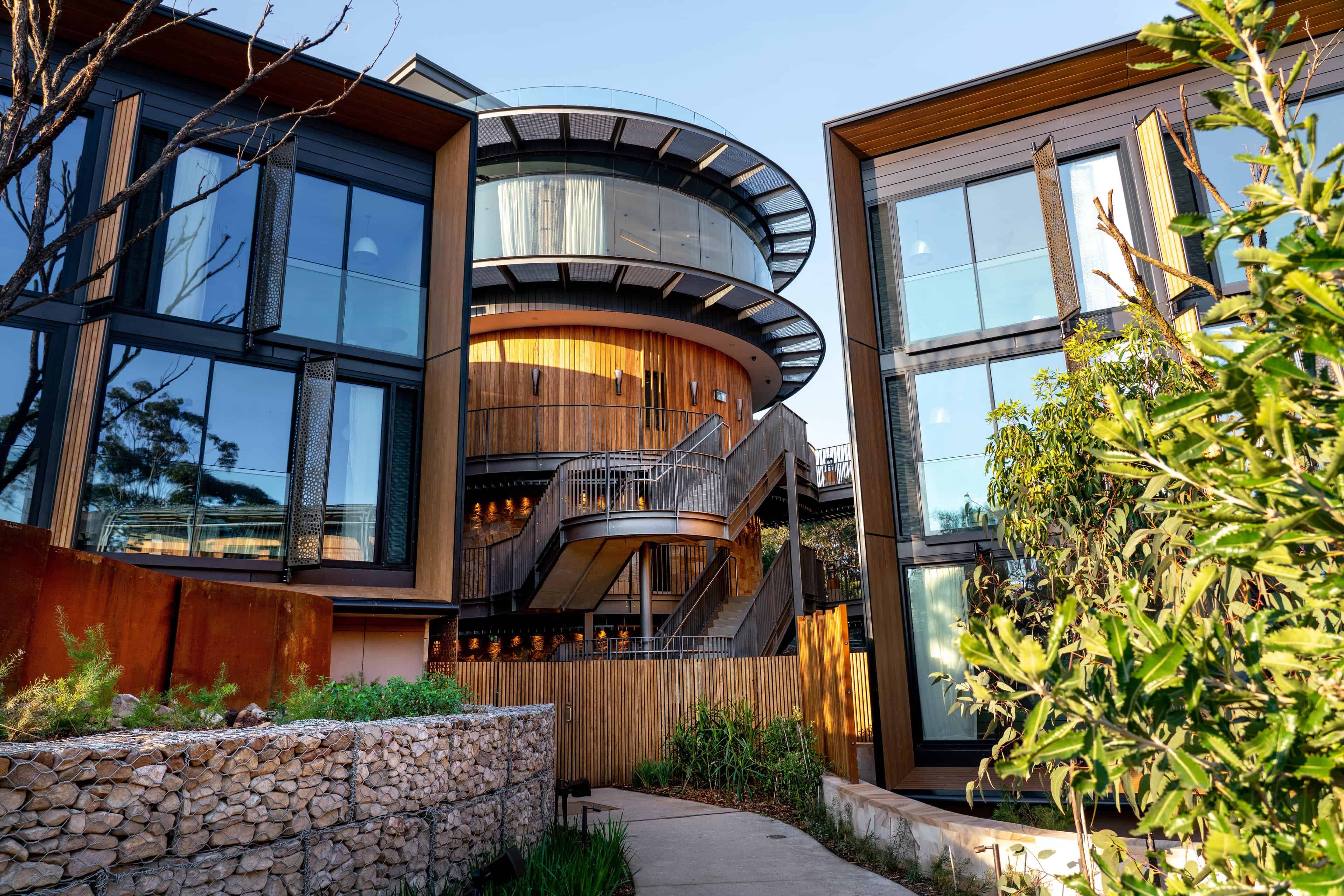

The Hunter Evo 150mm Double Flush Glazed Framing is the most versatile and flexible of the Alspec® Commercial Framing Systems. Available in a frame depth of 150mm x 50mm, it is ideal for shopfronts and low-rise curtain wall applications.

With it’s straight cuts and flush glazing the Hunter Evo not only looks good, but is easy to fabricate and easy to install. Suitable for a range of double glazed options to address the most demanding energy requirements. With self draining sub sills it also solves water leakage problems. The system can be internally or externally glazed along with incorporating the flexibility and appeal of gently curved or faceted frame installations. The Hunter Evo also provides a seamless interface with Alspec’s® extensive product offer.

Key Features

Sharp unbroken lines
Flush glazed appearance
Robust frame
Up to 40mm double glazed
Easily adapts to Alspec’s awnings and hinged doors

Frame Dimensions

Option 1

150 x 50mm

Maximum Product Performance

SLS (Pa)	6000
ULS (Pa)	9000
WATER (Pa)	1000

Compatible Systems

Windows & Doors	Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors	Torrens 45mm Commercial Shopfront Door
Windows & Doors	Awning and Casement Windows
Windows & Doors	ProTilt® High Performance Awning/Casement Window
Windows & Doors	ProGlide® High Performance Sliding Door
Windows & Doors	Altitude® Apartment Sliding Door
Windows & Doors	ProVista™ Sashless Double Hung Window
