ProGlide Minimalist™ Sliding Door

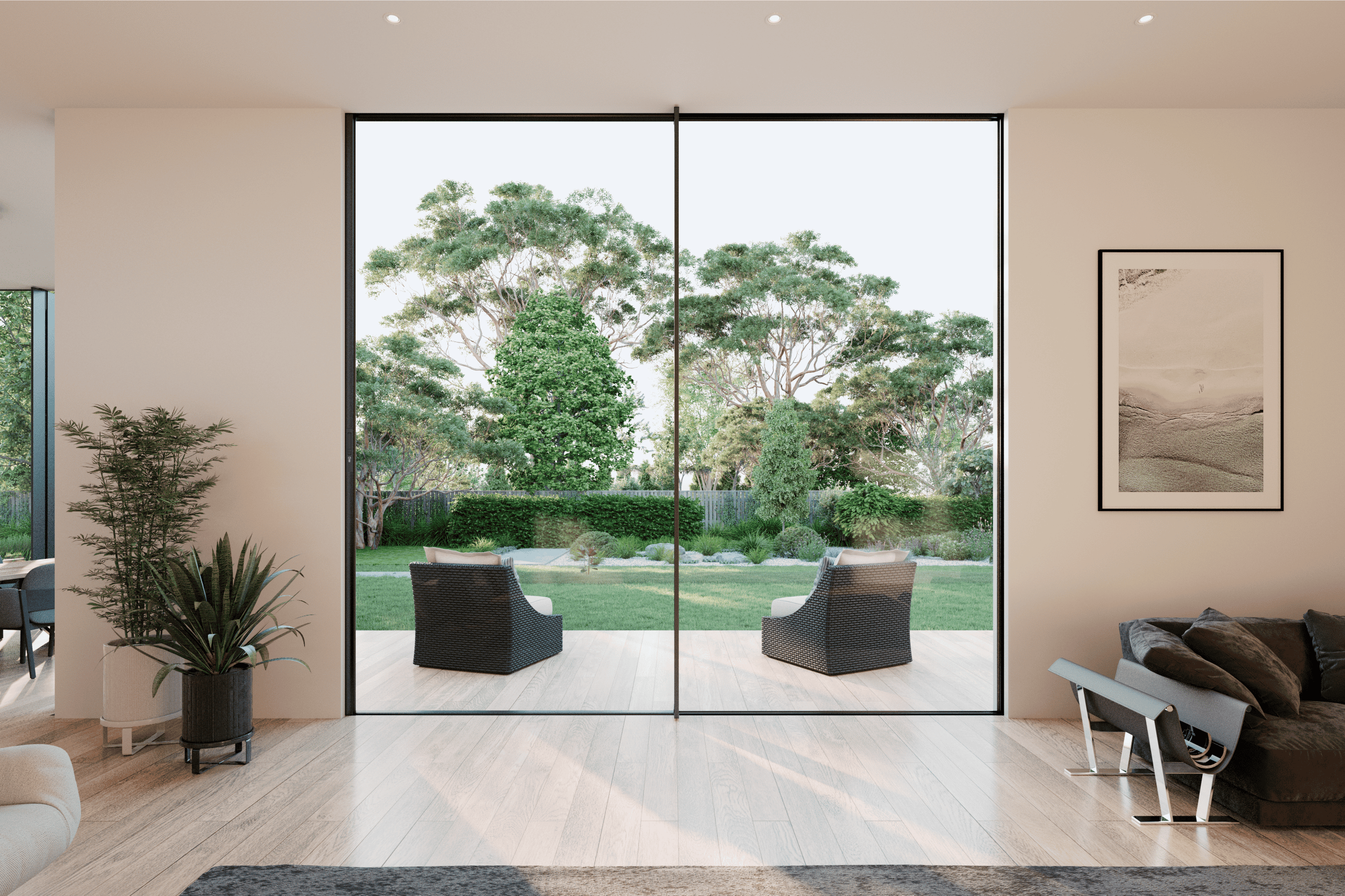

The ProGlide Minimalist™ is Alspec’s next-generation sliding and stacking door system, designed for expansive views, clean lines, and exceptional performance. With embedded top, bottom, and jamb rails, it delivers a seamless, minimalist transition between indoor and outdoor spaces.
Key Features
- Designed in Australia for Australian conditions
- Large panels
- 2 and 3 track options

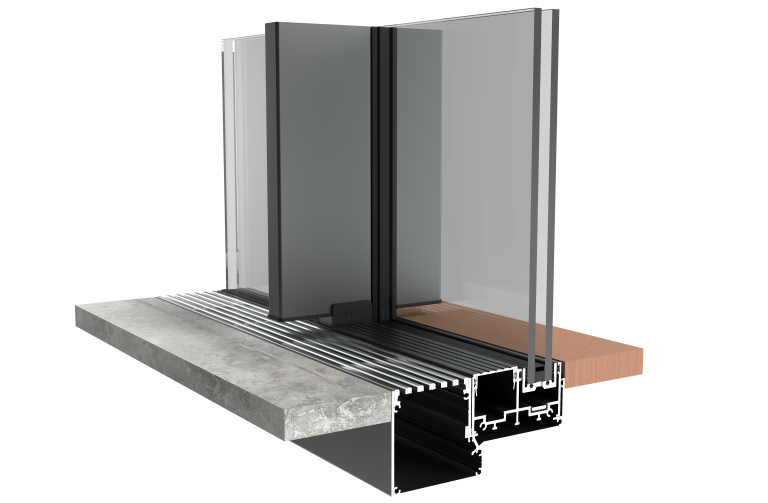

- Embedded top & bottom rails
- Embedded jamb stile
- Floor to ceiling glazing
- Slim interlock
- Triser hardware
- Featuring Alspec Hardware : The Triser Flush Sliding Door Lock
Technical Specifications
Frame Dimensions
| Option 1 | 101 x 50mm |
| Option 2 | 151.5 x 50mm |
Compatible Systems
| Commercial Framing | McArthur Evo 101.6mm Centre Pocket Framing |
| Commercial Framing | McArthur Evo 150mm Centre Pocket Framing |
| Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
| Commercial Framing | ecoFRAMEplus 150mm Centre Pocket Double Glazed Framing |
| Commercial Framing | ecoFRAMEplus 76mm Centre Pocket Double Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Single Flush Glazed Framing |
Maximum Recommended Sizes
| Height | 3500mm |
| Panel Width | 2400mm |
| Panel Weight | 400kg |
Thermal Performance
| DG Uw | 2.5 |
| DG SHGC | 0.23 |
Glazing Details
| Double Glazed | 24, 28 & 30mm |
Downloads
Brochures

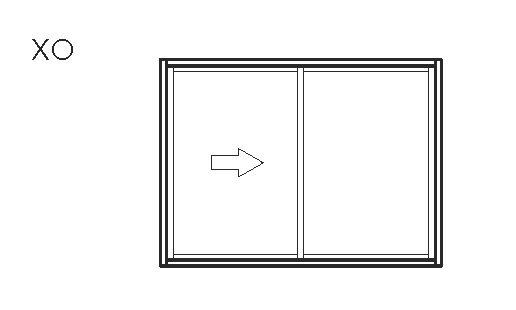

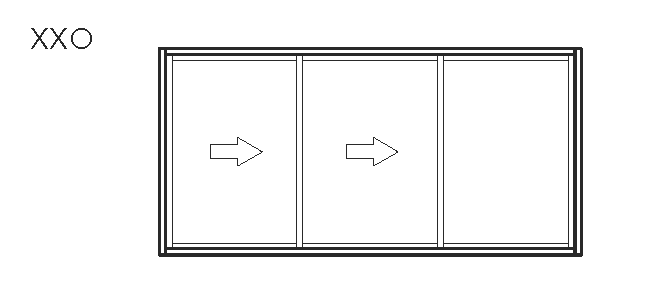

Typical Configurations
WERS Ratings
