Hunter Evo 150mm Acoustic Framing

This 150mm Acoustic Framing is the ideal system when sound reduction is paramount, it is ideal for commercial shopfronts, showrooms and high end residential projects.

DOWNLOAD BROCHURE WERS Rating

Tested and Compliant Solutions

Acoustics Compliant

AS2047 Compliant

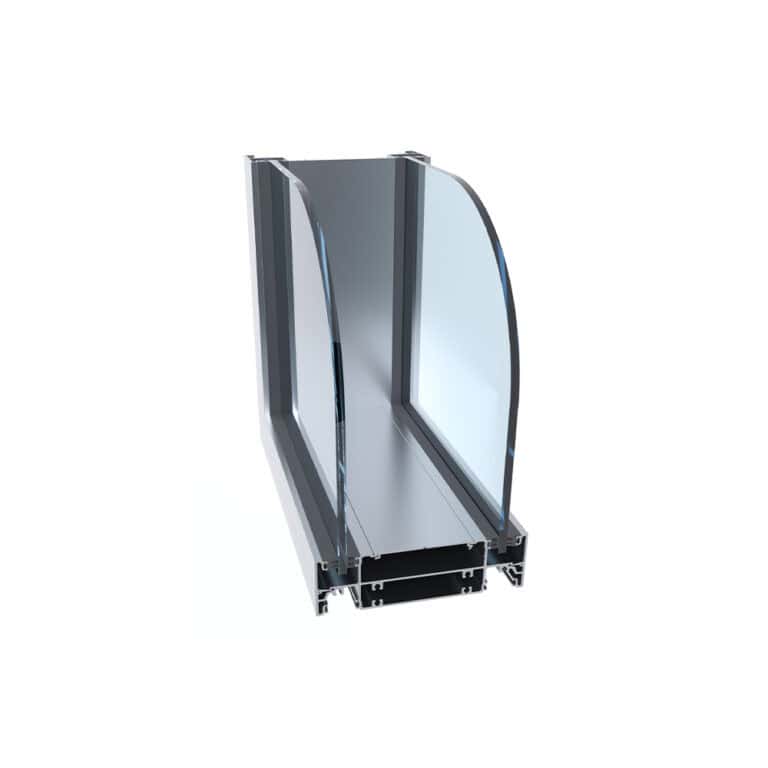

The Hunter Evo 150mm Acoustic Framing is the ideal system when sound reduction is paramount. Featuring dual 19mm glazing pockets with 100mm airspace, the Hunter Evo Acoustic Frame is ideal for commercial shopfronts, showrooms and high end residential projects.

Featuring straight cuts and flush glazing the Hunter Evo Acoustic Frame not only looks good, but is easy to fabricate and install. Providing a seamless interface with the Hunter Evo Flush Glazed Framing system as well as accepting 35mm and 50mm awning sashes, this system offers the flexibility and performance demanded for modern build environments.

Key Features

Superior acoustic performance
Sharp unbroken lines
Flush glazed appearance
Robust frame
Good weathering
Glass type include 6mm up to 14mm
Easily adapts to Alspec’s awnings and hinged doors

Frame Dimensions

Option 1

150 x 50mm

Compatible Systems

Windows & Doors	Awning and Casement Windows
Windows & Doors	ProVista™ Sashless Double Hung Window
Windows & Doors	Dualair®
Windows & Doors	ProGlide® High Performance Sliding Door
Windows & Doors	Altitude® Apartment Sliding Door

Maximum Product Performance

SLS (Pa)	3000
ULS (Pa)	4000
WATER (Pa)	1200

Glazing Details

Glass Position	Front/Back
Double Glazed	6 - 14mm (x2)

Acoustic Performance: Rw (c;c^tr)

6 – 4	44 (-1,-5) dB
6 – 6	41 (-2,-6) dB
6.38 Vlam – 4	45 (-2,-6) dB
6.38 Vlam – 6	45 (-1,-5) dB
6.38 Vlam – 6.38 Vlam	45 (-1,-4) dB
6.5 – 6.38 Vlam	47 (-1,-5) dB
6.5 – 6.5	48 (-1,-4) dB
10.5 – 10.38 Vlam	49 (-1,-4) dB
12.38 Vlam – 10.5	48 (-1,-3) dB
12.5 – 6.38 Vlam	48 (-1,-4) dB
12.5 – 10.5	50 (-1,-4) dB
12.5 – 10.38 Vlam	48 (-1,-4) dB
12.5 – 12.38 Vlam	49 (-1,-4) dB
12.5 – 12.5	50 (-2,-3) dB
