Products / Carinya Residential Windows & Doors

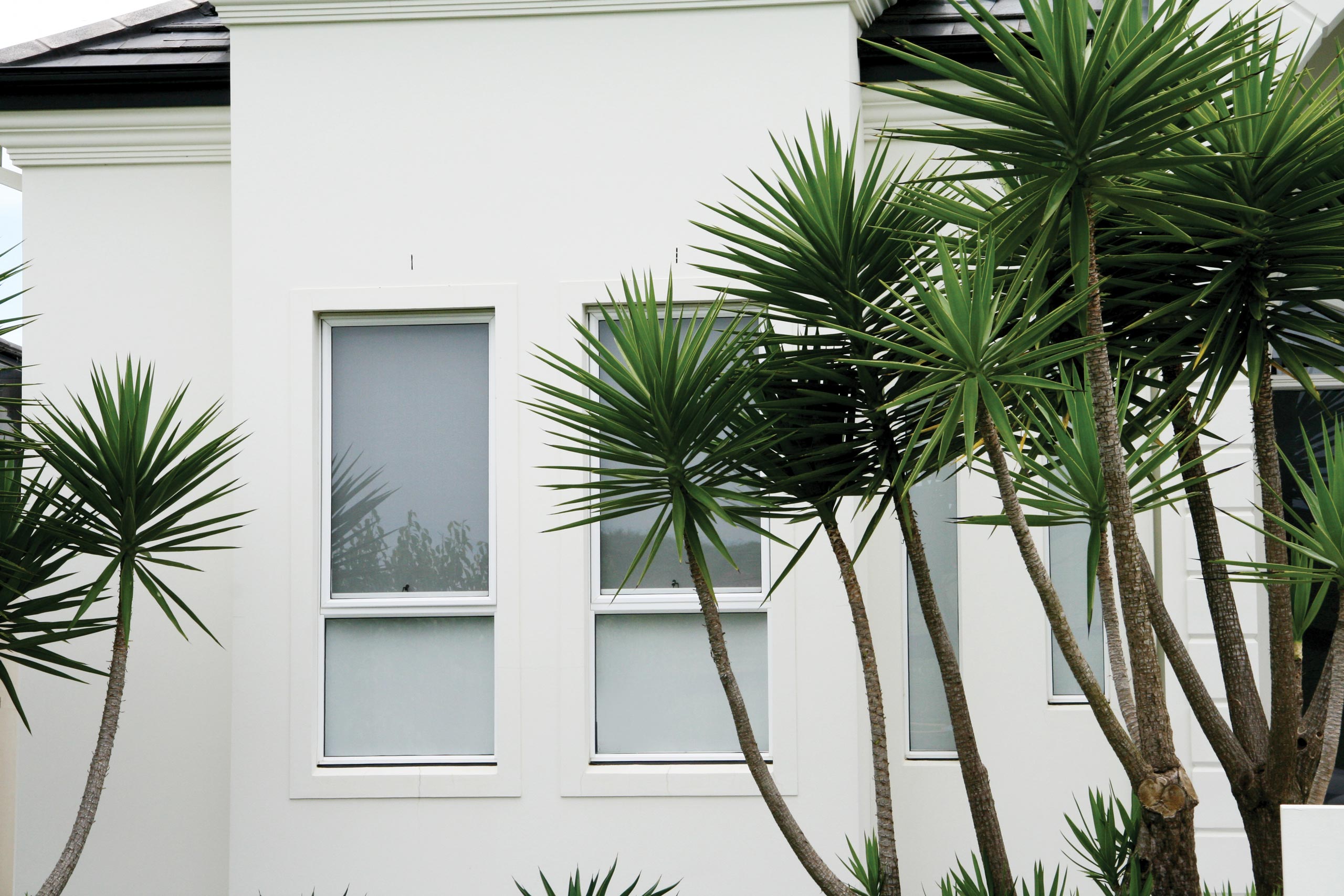

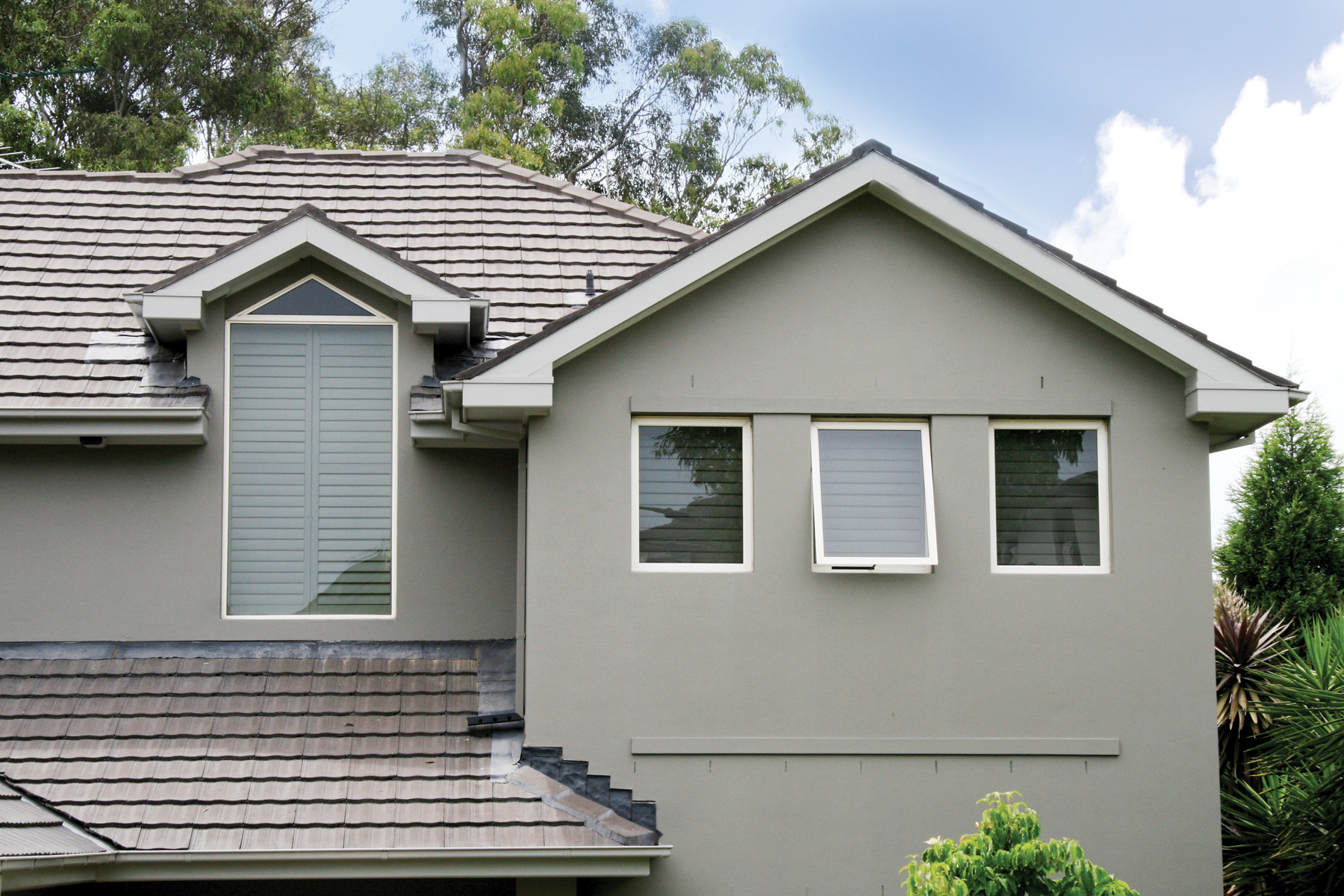

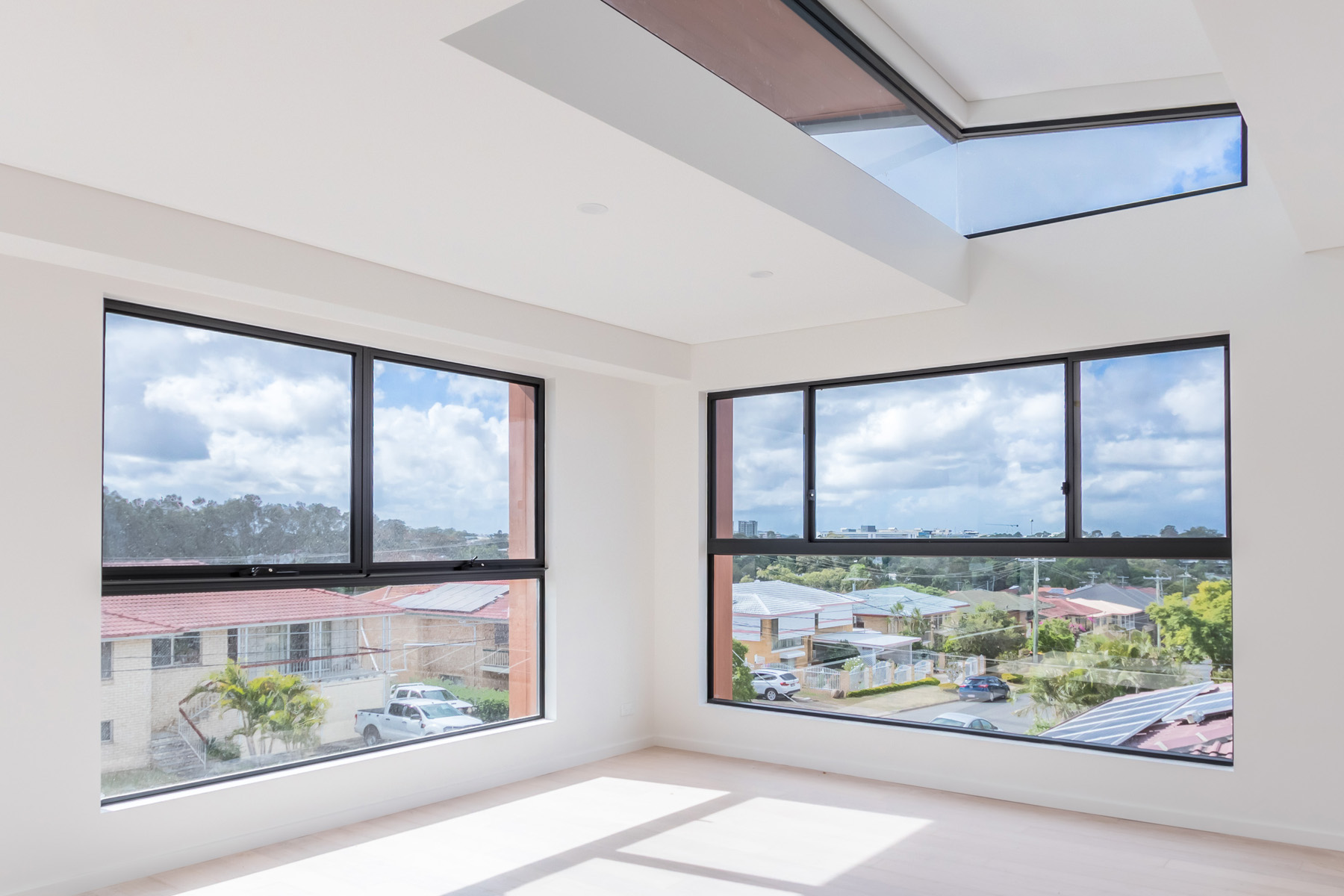

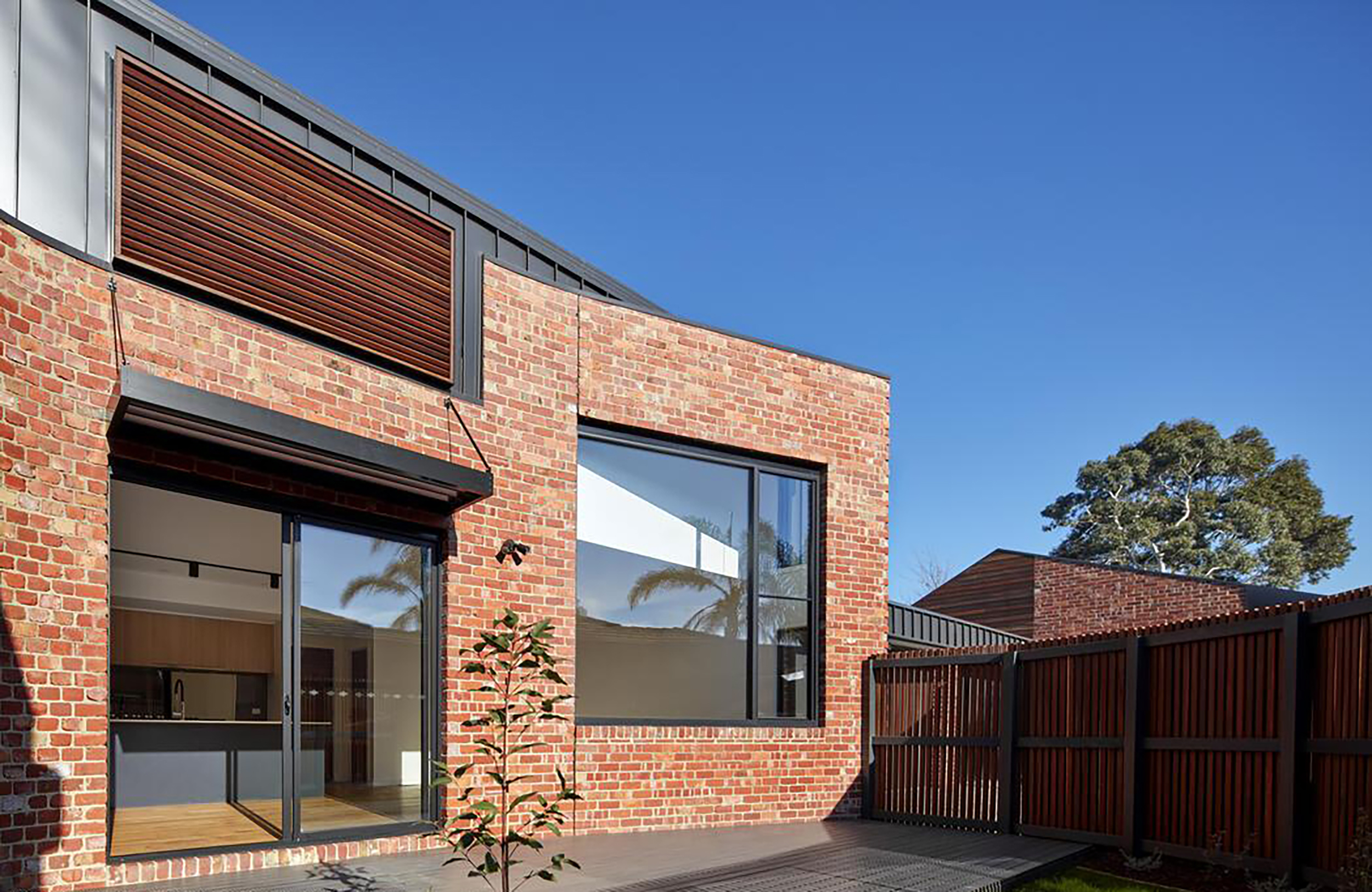

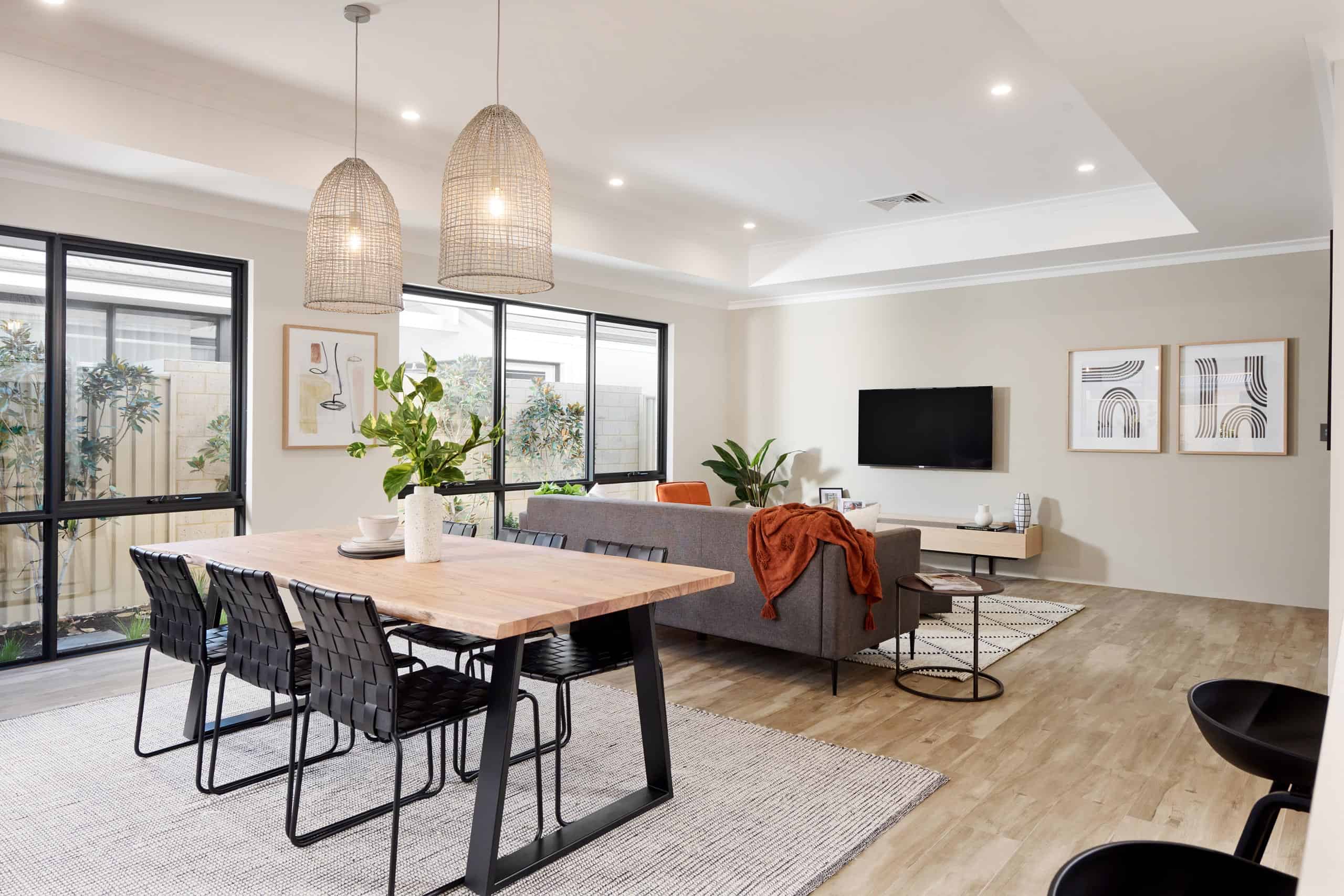

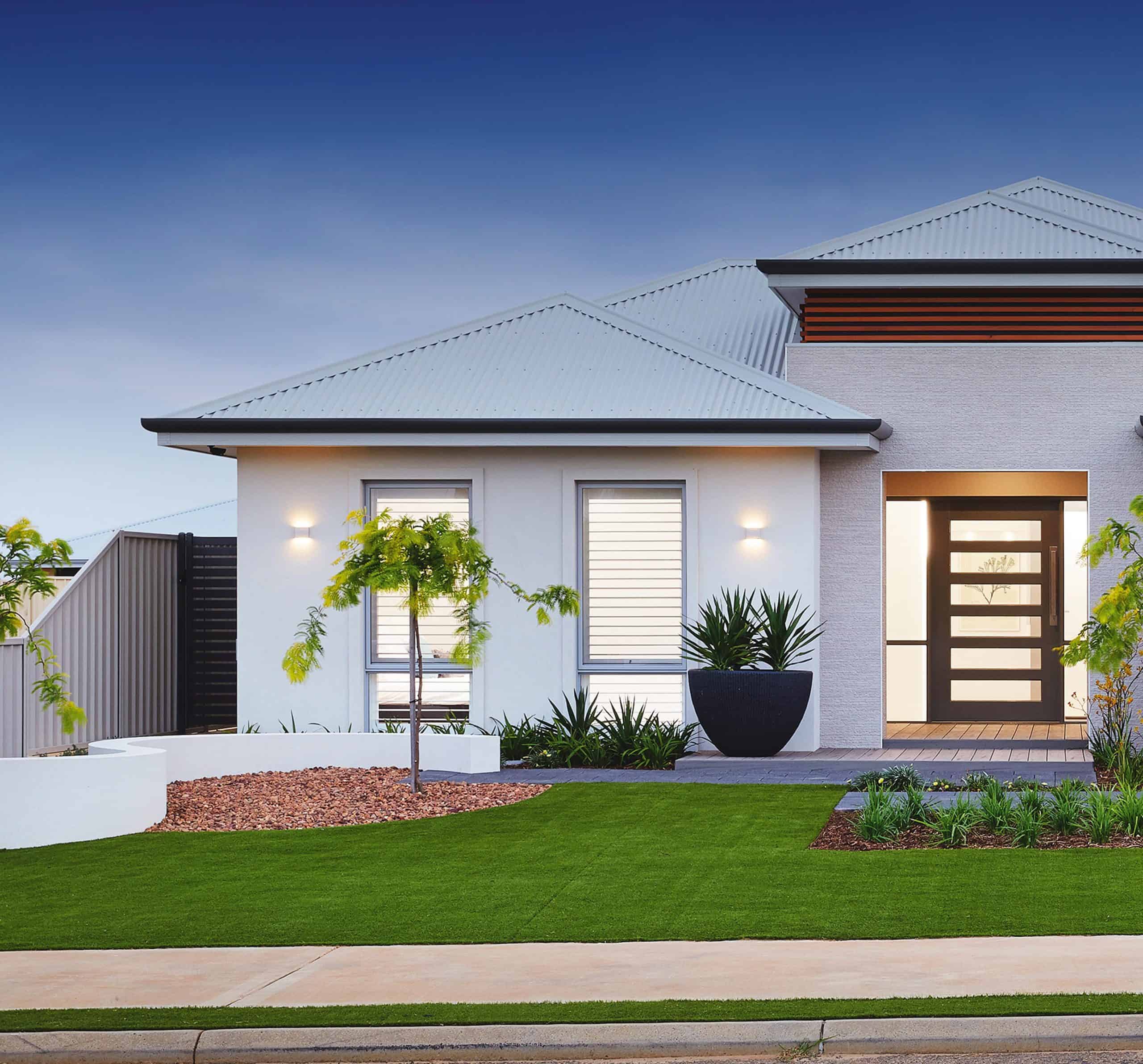

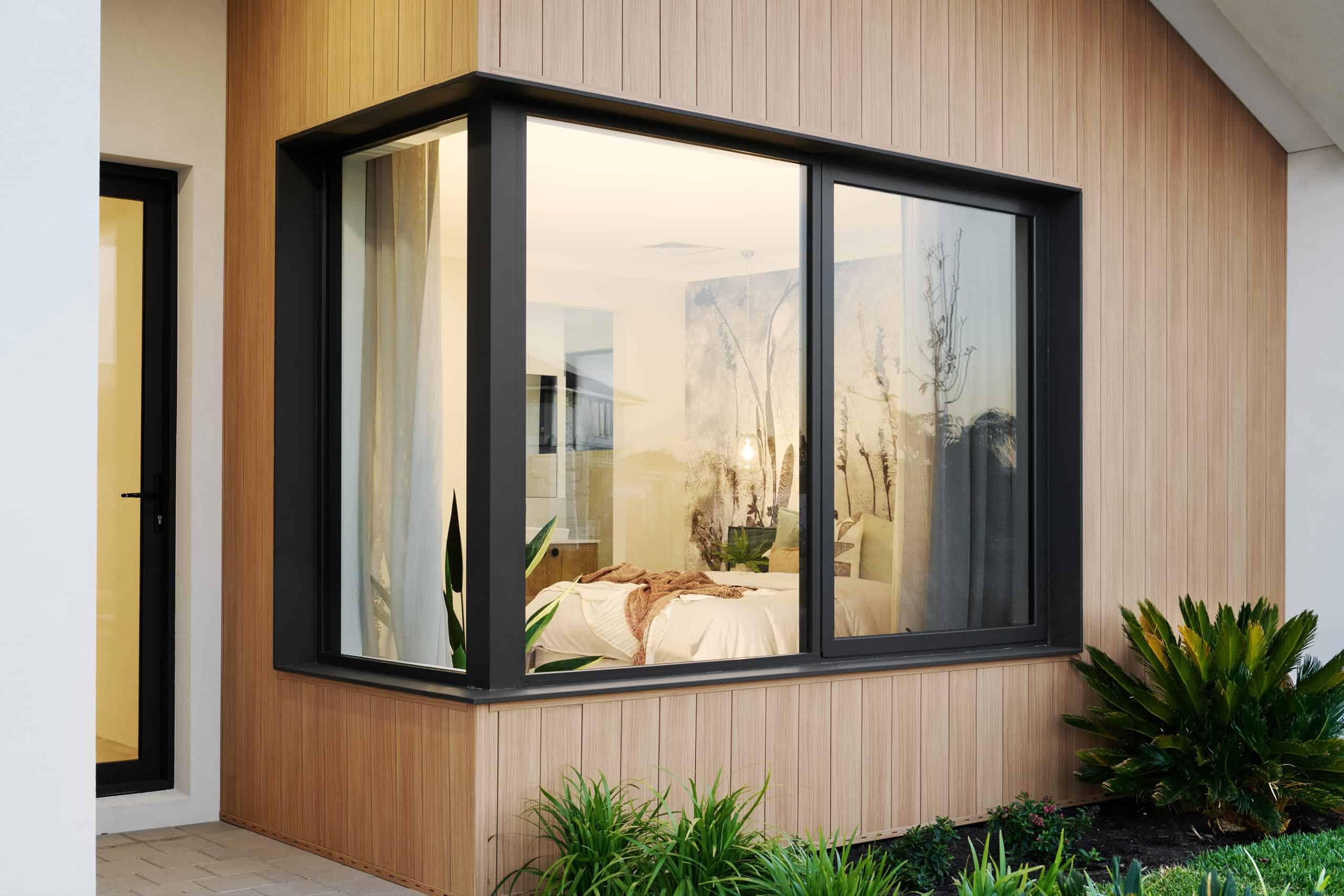

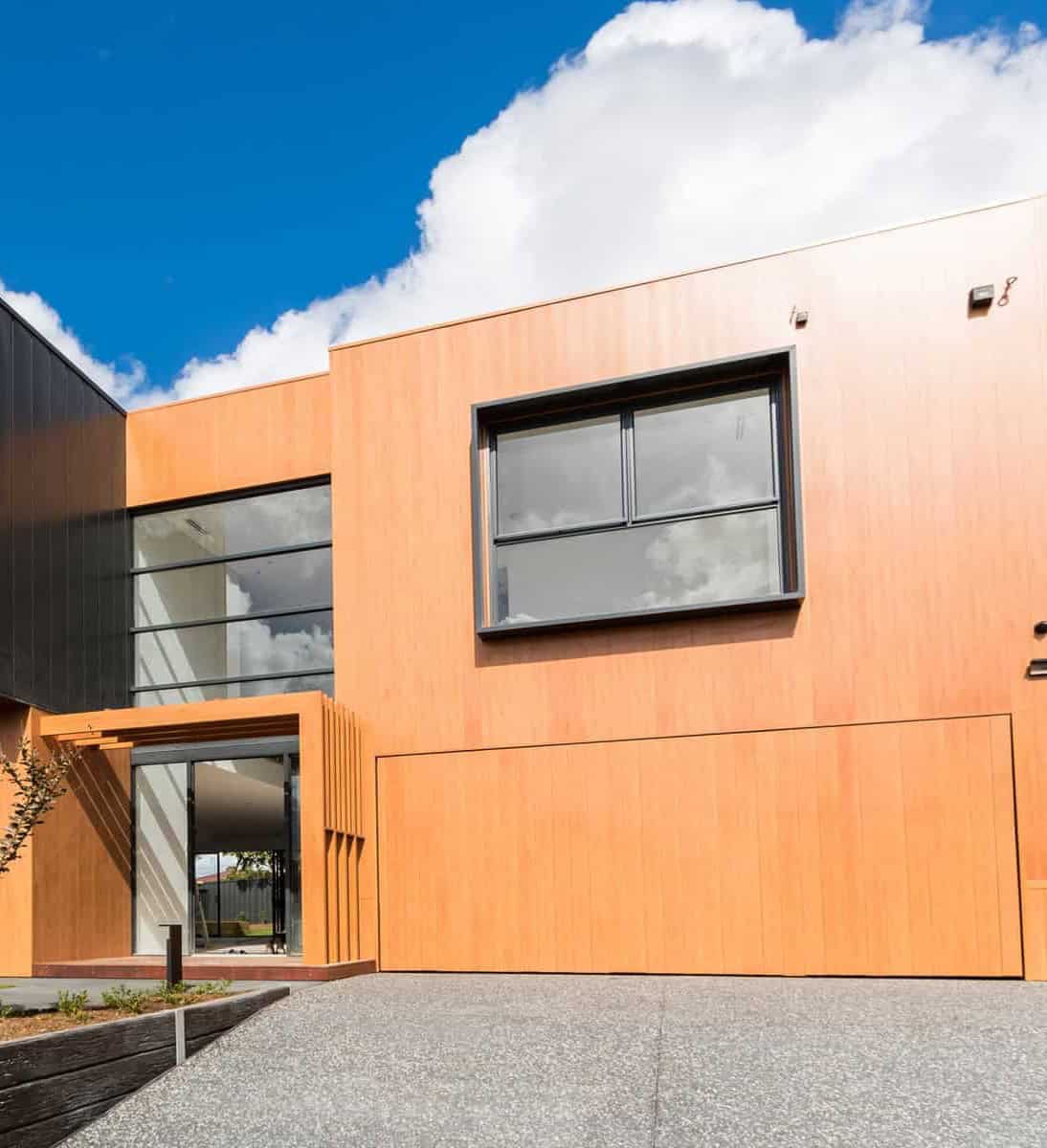

Classic Awning Window

The Carinya Classic Awning Window is a mainstay range featuring two frame widths and multiple sash options.

DOWNLOAD BROCHURE WERS Rating View on Carinya website

Tested and Compliant Solutions

BAL40
Kid Safe
Acoustics
Compliant
Cyclonic
Read moreRead less

Key Features

  • A designer bevelled-edge frame is standard for Carinya awning and casement windows, and a wide sash is also available for high-end residential applications.
  • The integrated hinge design is incorporated entirely within the frame to achieve the clean designer finish.
  • Flexibility is another hallmark of all Carinya windows. There’s a choice of slim-line 50mm or premium 92mm frame options

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf

Specifications

Specifications

  • Maximum Sash Height: 2100mm
  • Maximum Sash Width: 2100mm
  • Maximum Glass Thickness: 10.5mm or 18mm IGU
  • Maximum Sash Weight: 40kg
  • Maximum Sash Area: 1.26m²
  • Frame width available in 50mm & 92mm

Application

  • New Residential Construction
  • Window Replacement and Renovation
  • Low-Rise Building

Options

  • Choice of a semi-commercial 60mm sash
  • Choice of a 50mm or 92mm perimeter frame.
  • Awning frame creates all fixed frame and interacts with couplers.
  • Choice of screening options BetterVue® and UltraVue® for superior mesh solutions.

Projects

Indoor-Outdoor Living, Kellyville

Alspec’s high-end window and doors create an extensive and inviting indoor-outdoor living and entertaining environment.

Designer Townhouses, Altona

By incorporating our stylish glazing solutions, these townhouses have a contemporary edge which sits comfortably within the existing established neighbourhood.

Floreat Residence, Perth

Transformed virtually beyond recognition, this older Perth home is now the epitome of modern open plan living.

Coolbinia Residence

Adding large panelled sliding doors and modern windows have given a light and spacious feel to this remodelled WA home.

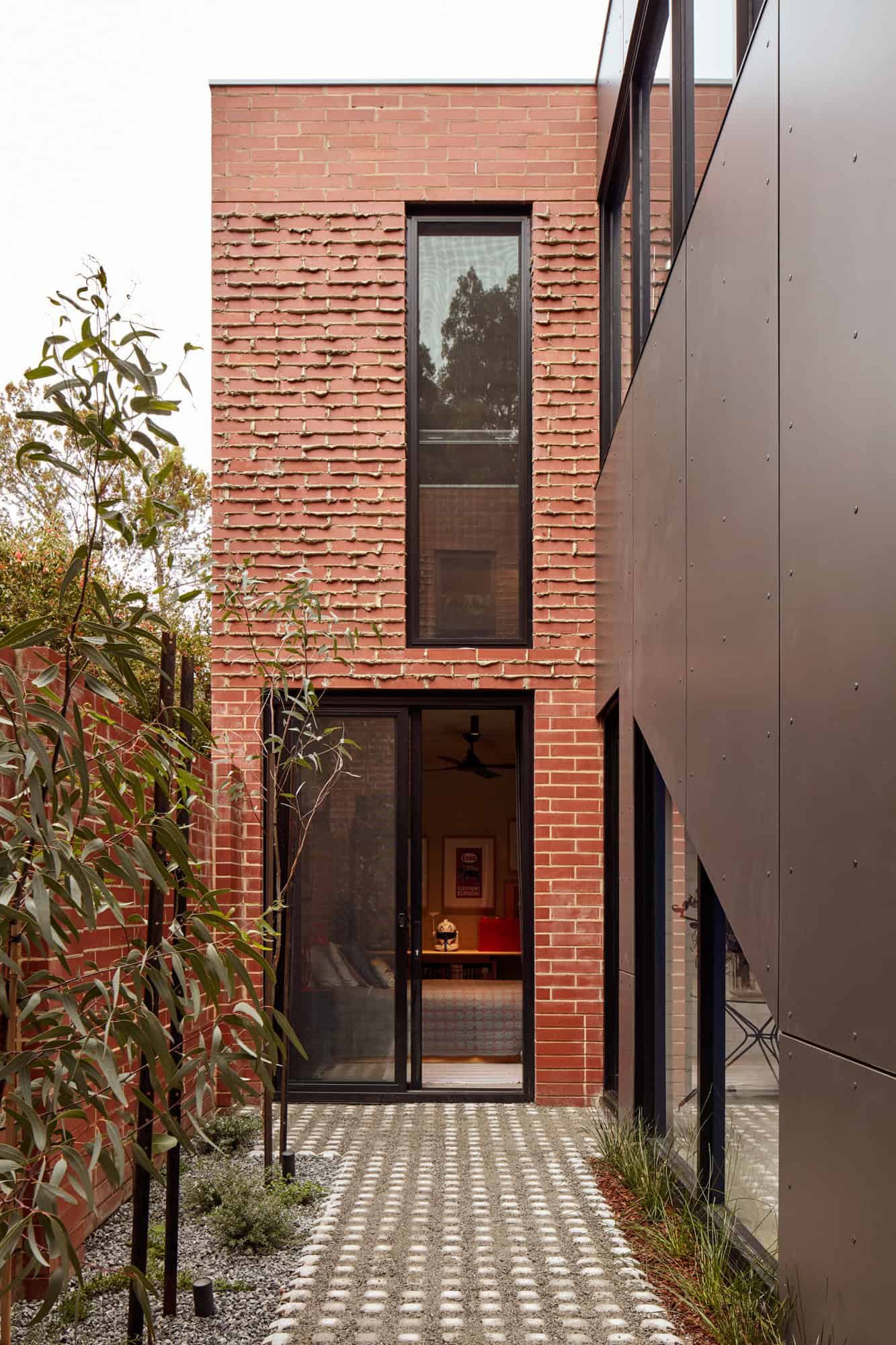

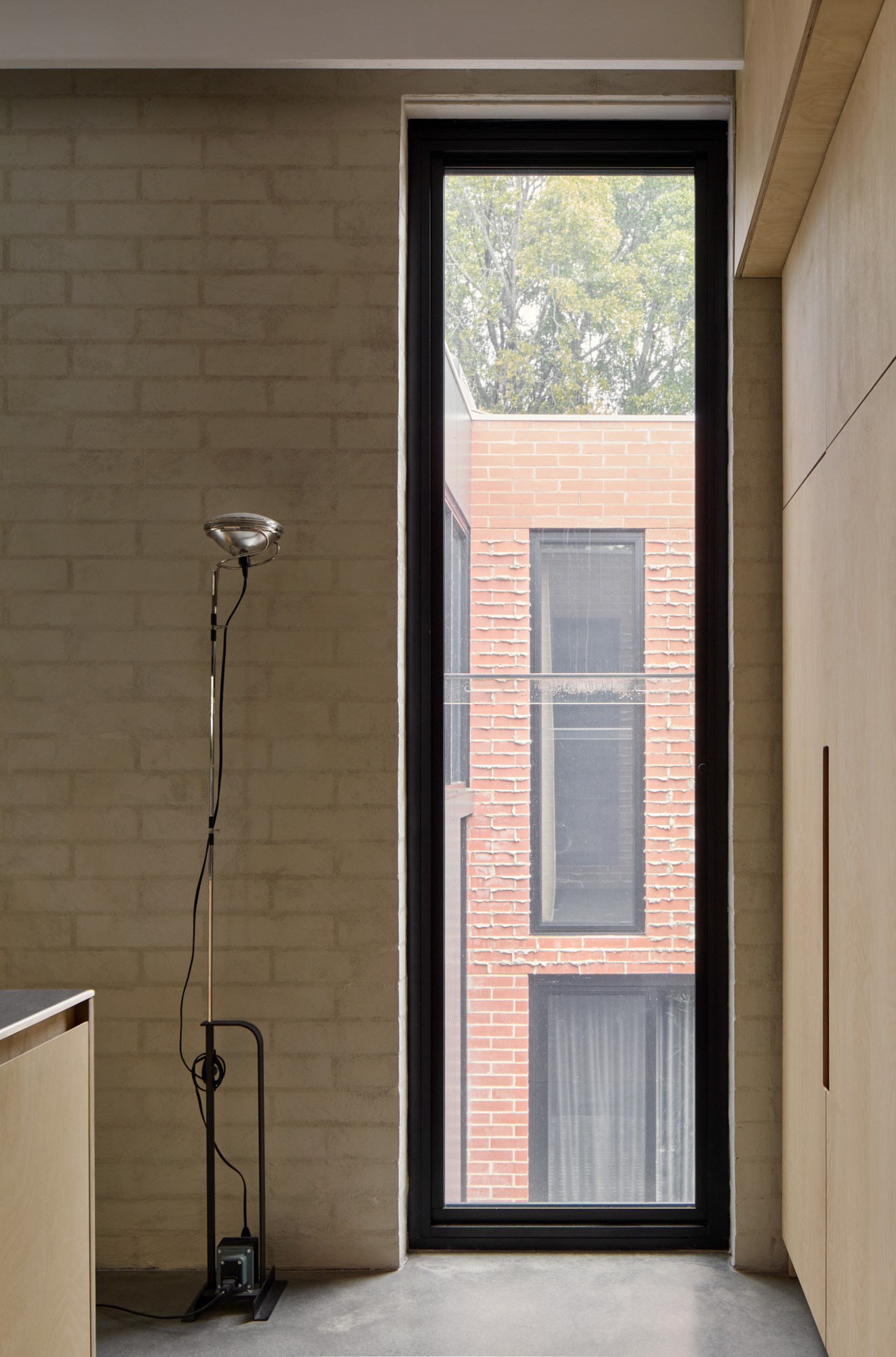

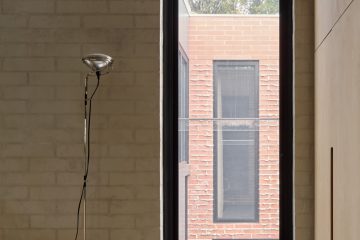

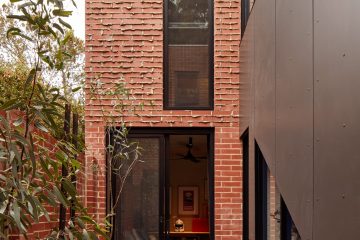

Mary St (Brick House), Highgate WA

Legacy in the Making at Mary St Brick House, Highgate WA

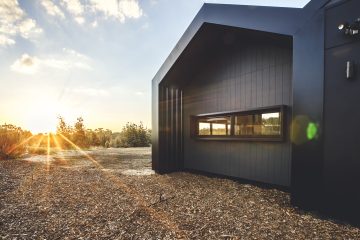

Par 3 House, Old Broadwater Farm, WA

Nestled in the serene landscape of Western Australia, Par 3 House is a striking example of sustainable design and modern craftsmanship.

6 Hamilton Street, Somerton Park, SA

Designed and built by Scott Salisbury Homes, this magnificent $3.5 million home, located at 6 Hamilton Street, Somerton Park, SA, is just a stone’s throw from the beach in one of Adelaide’s most desirable suburbs.

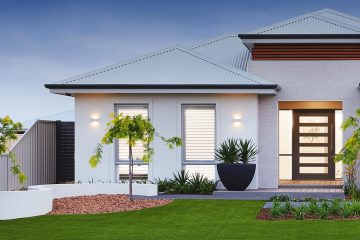

Brabham Display Home

Flooded with glorious natural lighting from every angle, The Belvedere display home in Brabham, Western Australia, is a testament to clean lines and utter modernity.
