Select Hinged Door
The Carinya Select Hinged Door is a premium product designed for those seeking superior functionality and style as a grand entry to their home.
Tested and Compliant Solutions
- Consisting of a modern designer look, the Carinya Hinged Door extrusions are a consistent 85mm wide face on both the stiles and rails, combined with a 40mm thick panel. This allows a balanced visual face and allows a vast array of hardware lock options. Combined with optional spigots, these door panels are superior in strength and performance.
- A generous 125mm frame allowing for integrated screening, as well as multiple combinations of single, double or sidelights, the Select Hinged Door is the optimal choice.
- A 92mm frame is also available for when screening is not required or for typical open out configurations. This also allows flexibility in design and budget.
- The Carinya attention to detail includes concealed flush bolt brackets, reducing visible fixings, as well as custom extrusion design allowing for clean interaction with door hardware.
- Compatible with Alspec’s Triser Architectural Hinge Door Lock
Downloads
Brochures
Typical Configurations
WERS Ratings
Specifications
Specifications
- Maximum Panel Height: 2400mm
- Maximum Panel Width: 1200mm
- Maximum Glass Thickness: 10.5mm or 24mm IGU
- Maximum Panel Weight: 50kg
- 125mm or 92mm Frame
Application
- New Residential Construction
- Window Replacement and Renovation
- Low-Rise Multi-Unit Developments
- Aged Care and Wheelchair Requirements
Options
- A range of sill options for internal or external opening.
- A range of sidelite options including glass louvre options.
- Integral screening options for security or insect protection.

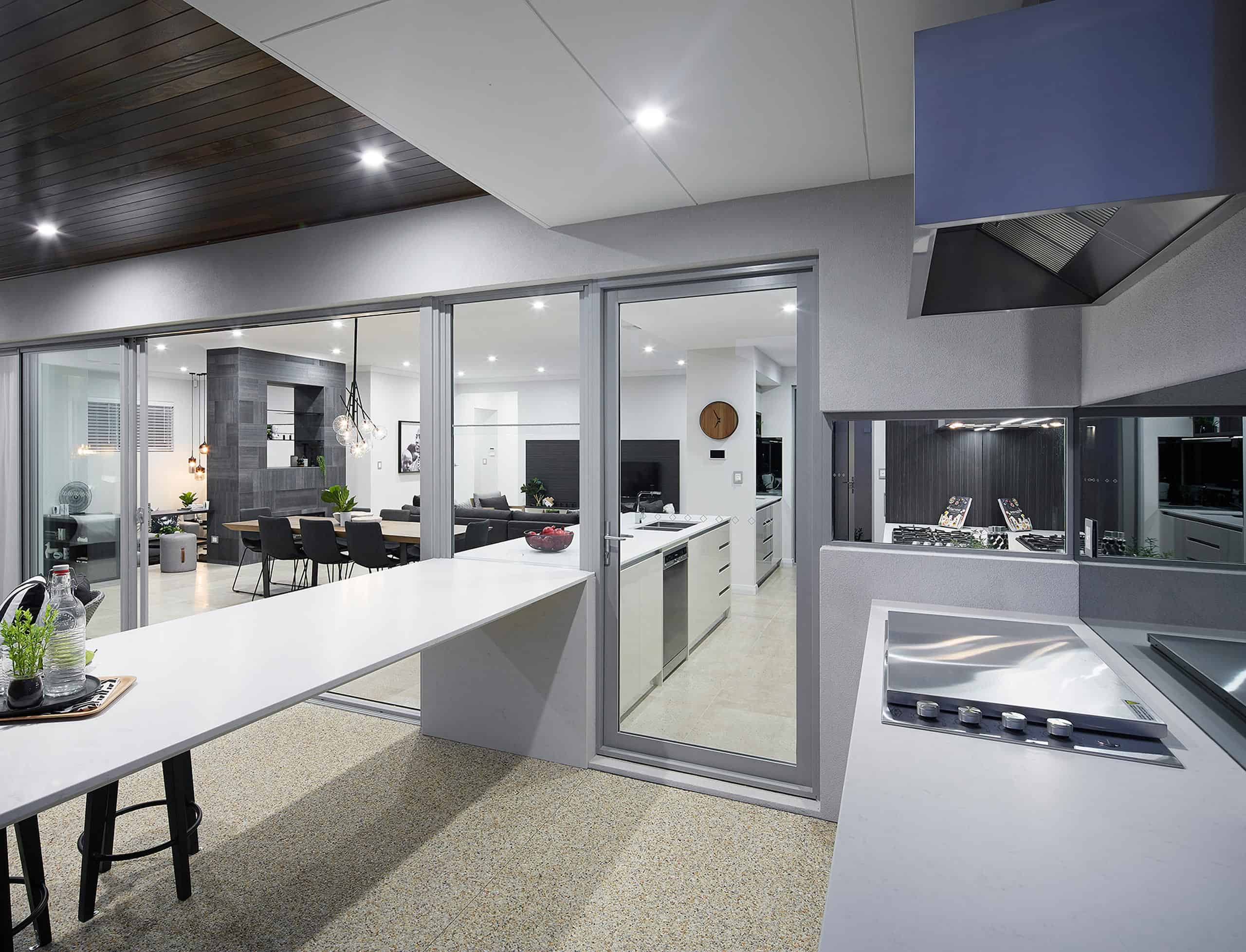

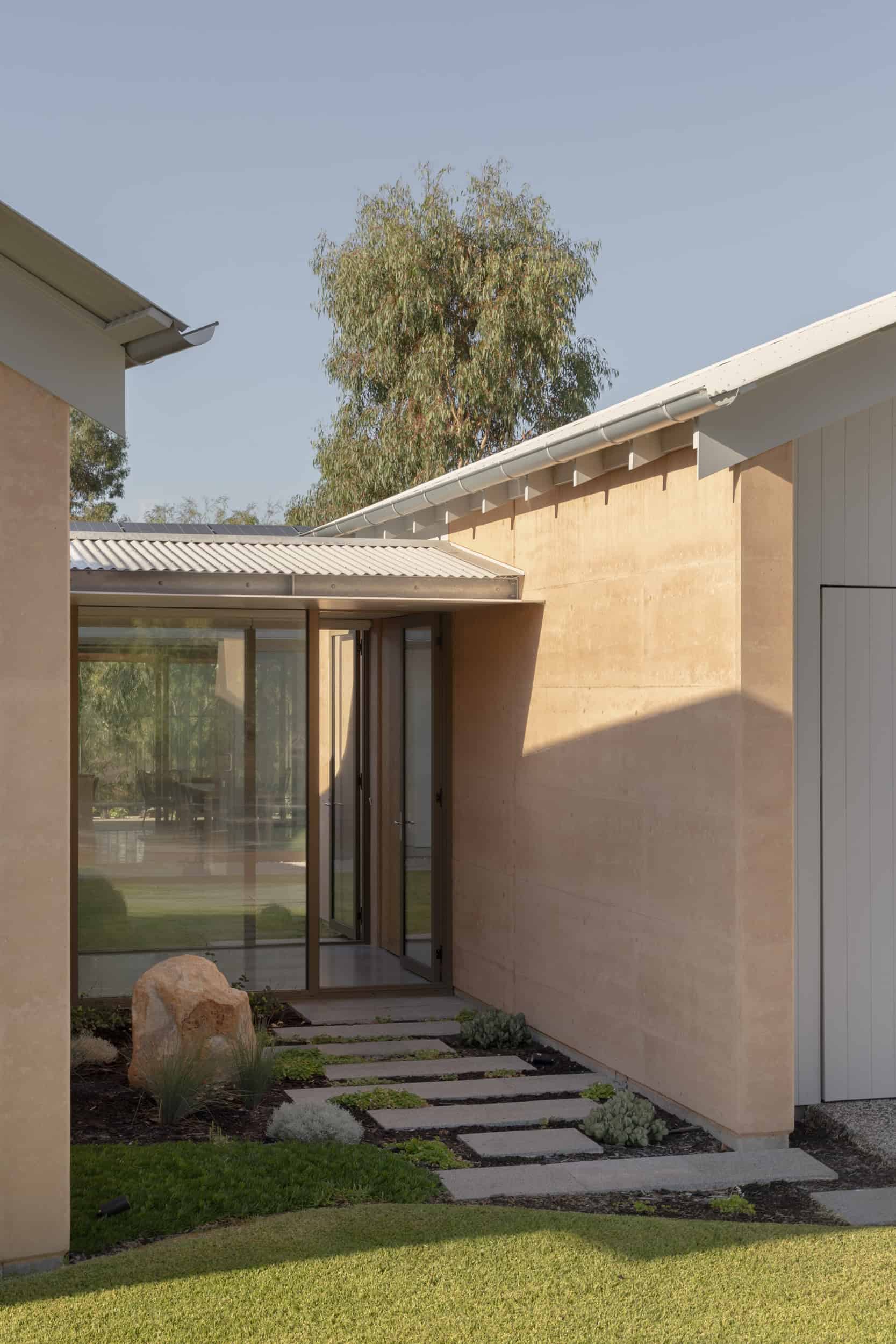

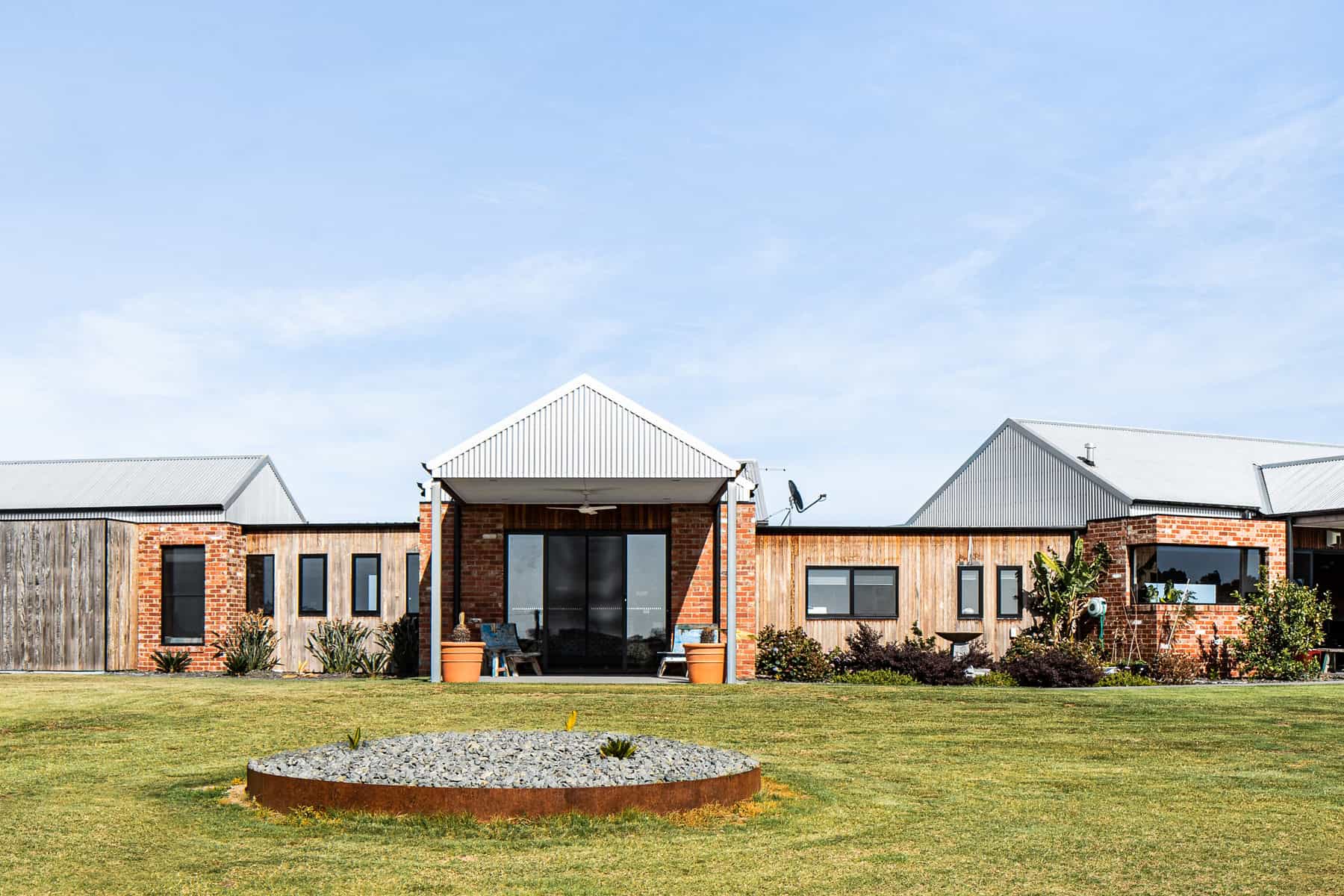

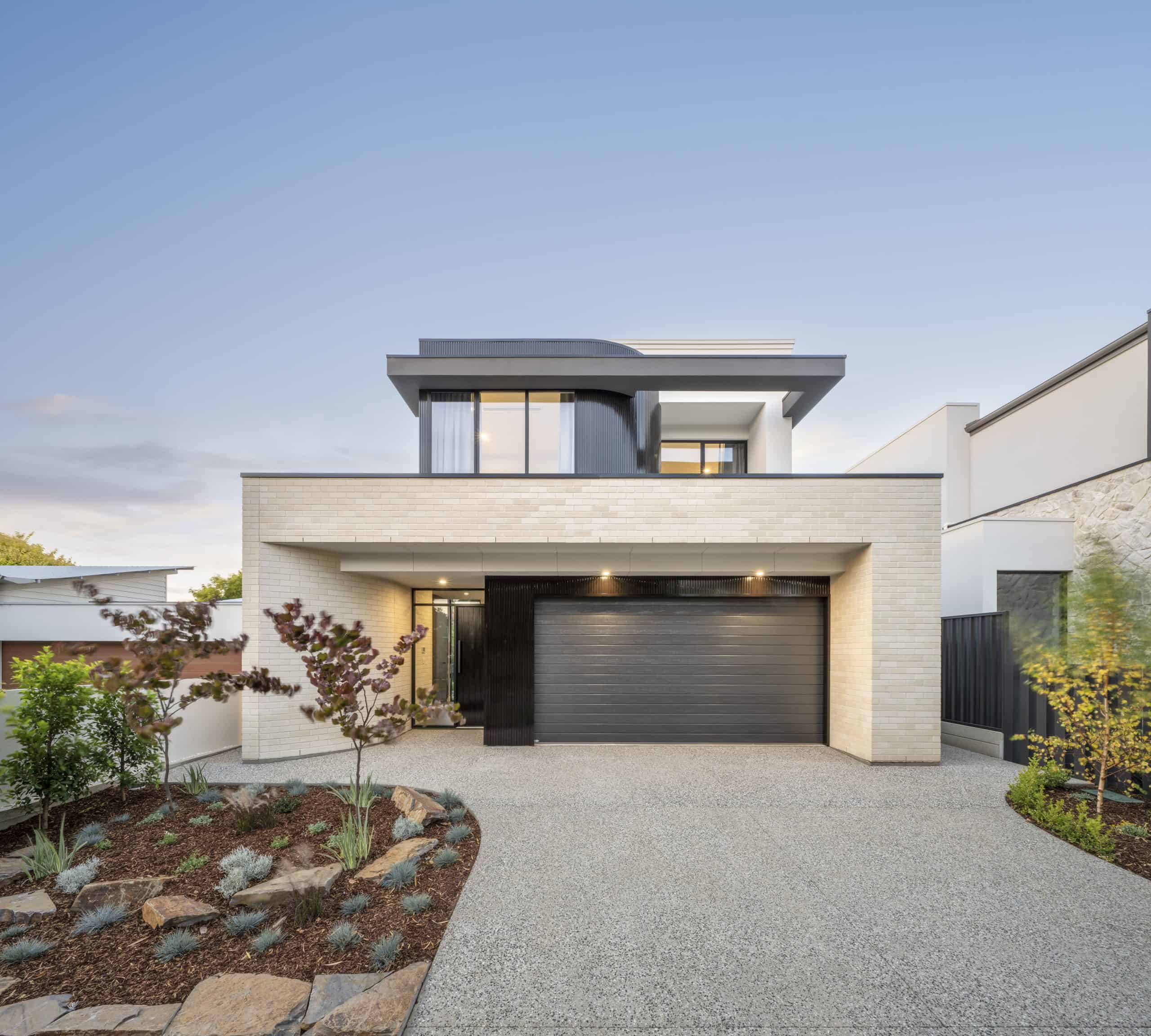

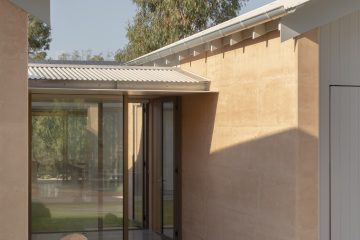

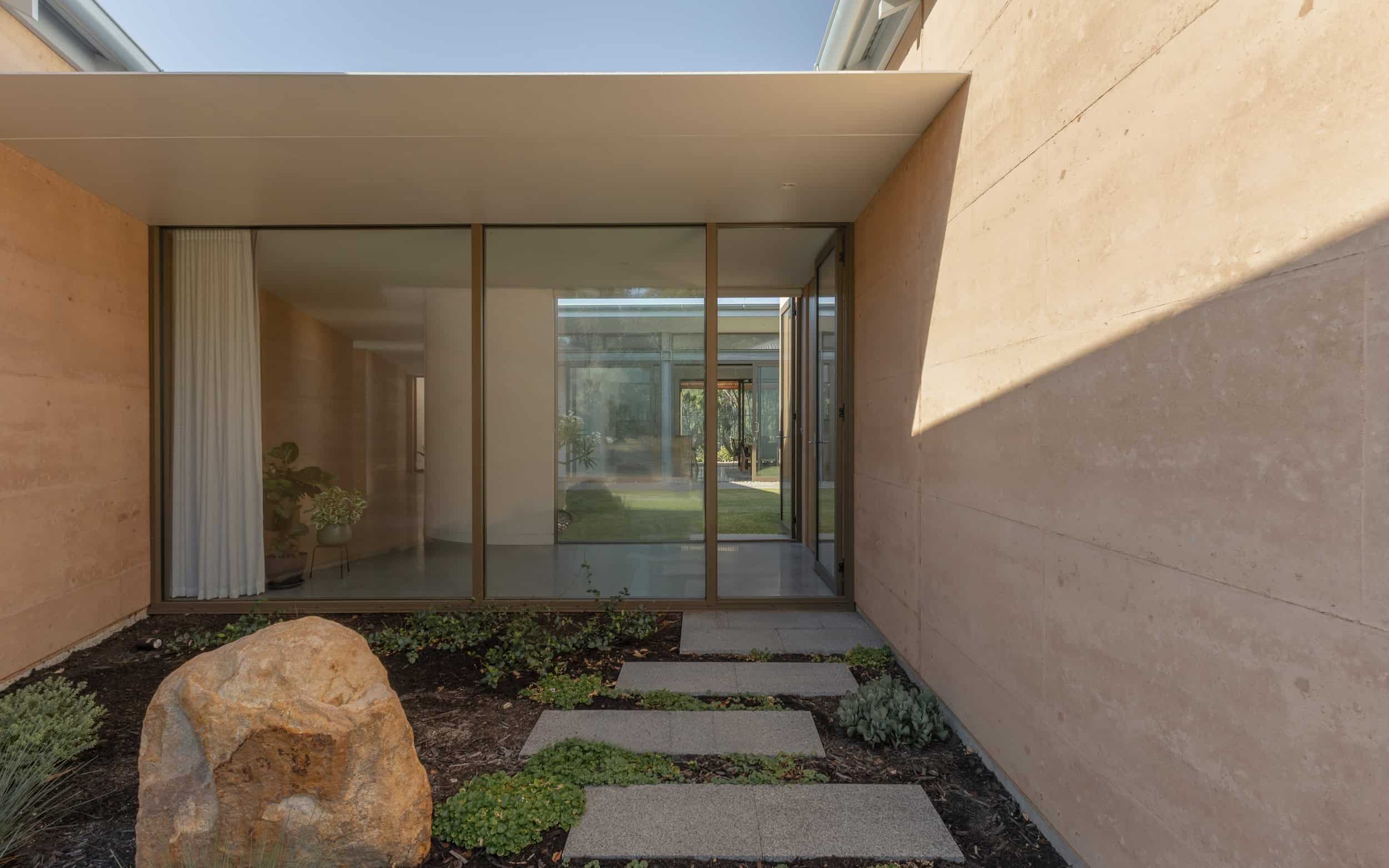

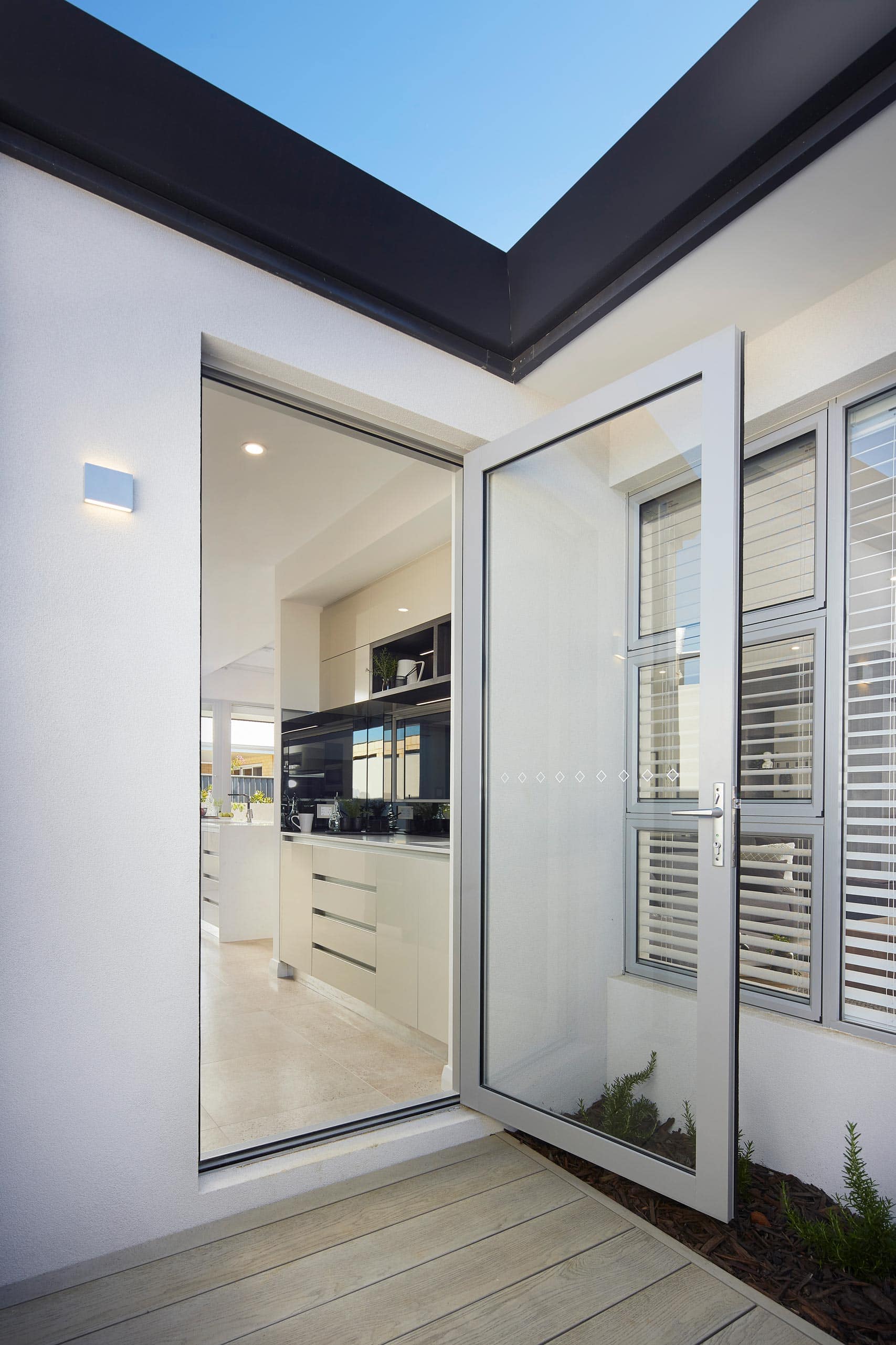

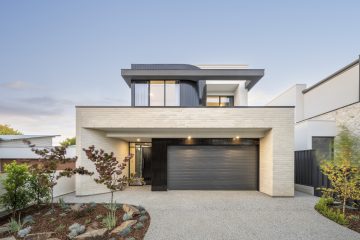

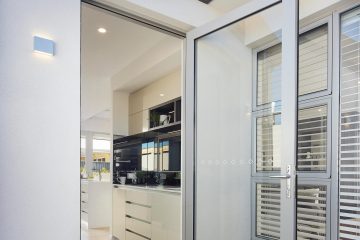

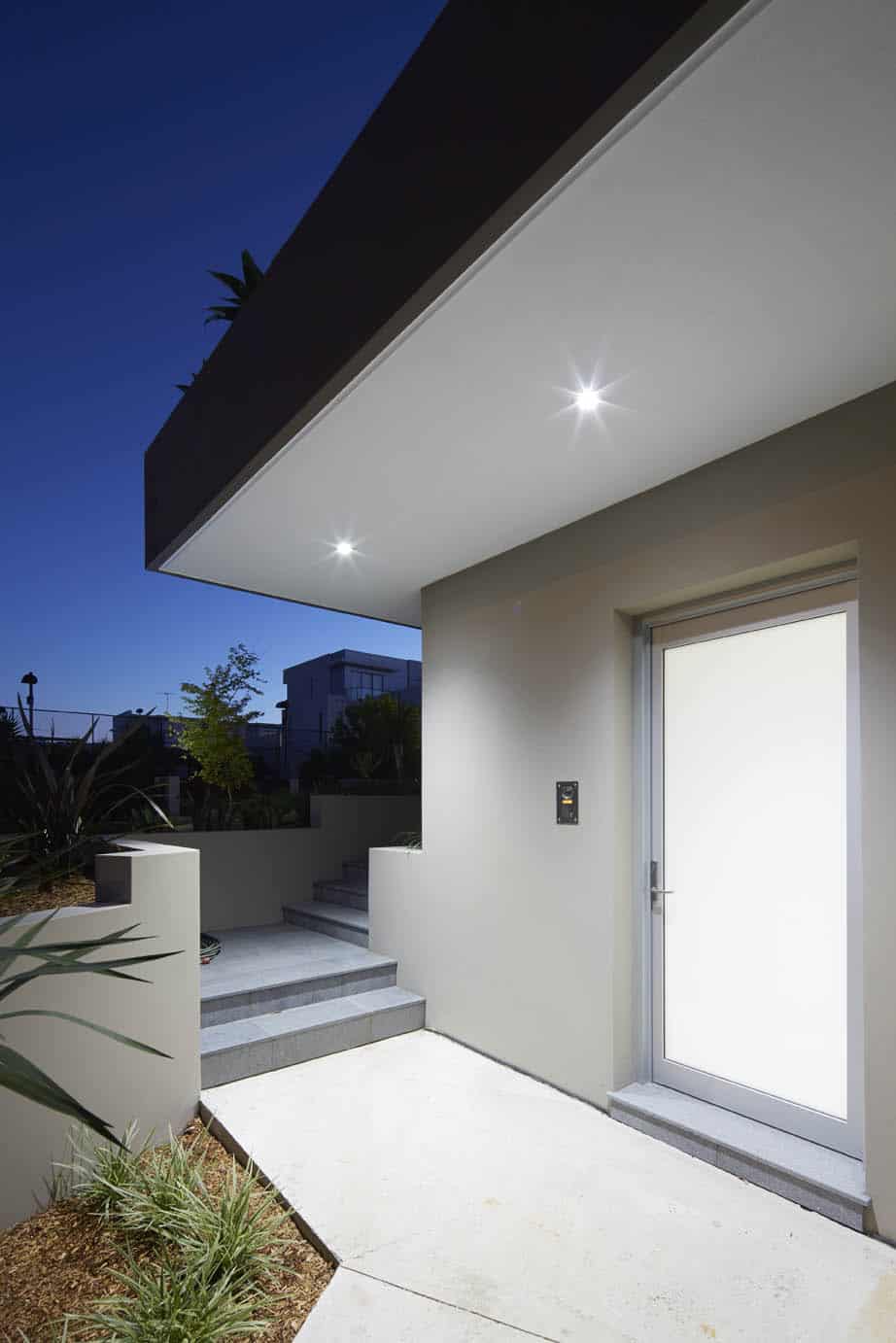

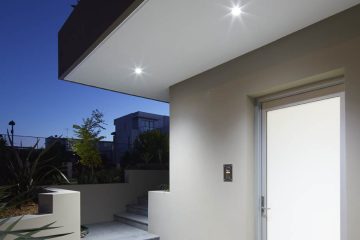

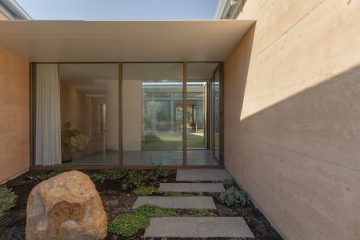

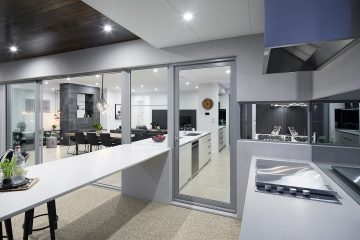

Gallery
