Comfort Thermally Broken Awning/Casement Window
The Carinya Thermally Broken Awning/Casement Window can boost your home’s comfort and energy efficiency and is the ideal choice for architecturally designed homes.
Key Features
- A designer bevelled edge frame is standard for Carinya awning and casement windows, with an option of 48mm and 60mm wide sash for high-end residential applications.
- The integrated hinge design is incorporated entirely within the frame to achieve a clean designer finish.
- Integrated reveal fin provision for frame to allow various internal finishes.

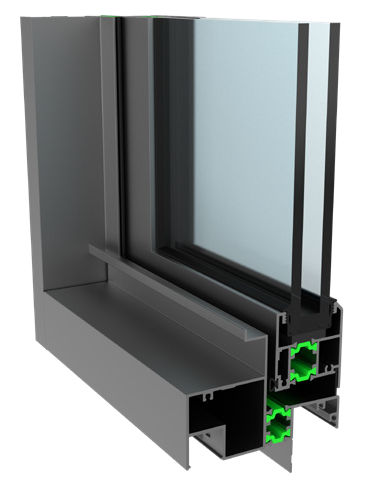

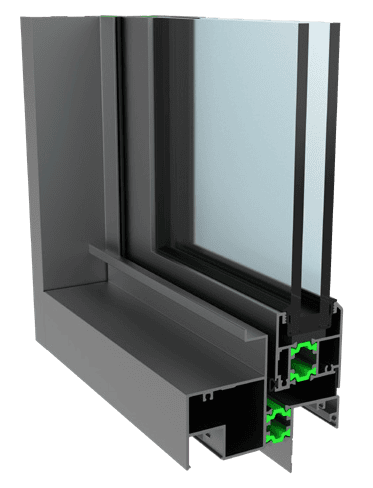

- Utilises a strong ‘Double Strut’ thermal break construction for maximum strength in the sash.
- Excellent Uw values 2.6 – 3.3.
- Integrated screening options are available.
- Sash features internal and external weather seals for maximum performance.
- Polyamide thermal break to minimise the transfer of heat and cold.
- Features Alspec Chainwinder.
Technical Specifications
Frame Dimensions
| Option 1: | Width 92mm |
Glazing Details
| Double Glazed: | 20 – 24mm |
Maximum Recommended
| Sash Height | 2455mm |
| Sash Width: | 2100mm |
| Weight: | 40kg |
Maximum Product Performance
| SLS (Pa): | 1800 Pa |
| ULS (Pa): | 4000 Pa |
| Water (Pa): | 600 Pa |
Thermal Performance
| Uw range DG | 2.3 – 3.3 W/m2-K |
| SHGC range | DG 0.26 – 0.55 |
Acoustic Performance:
| Rw (c;ctr) 4/12/4mm: | 30 (-1;-3) dB |
Downloads
Brochures

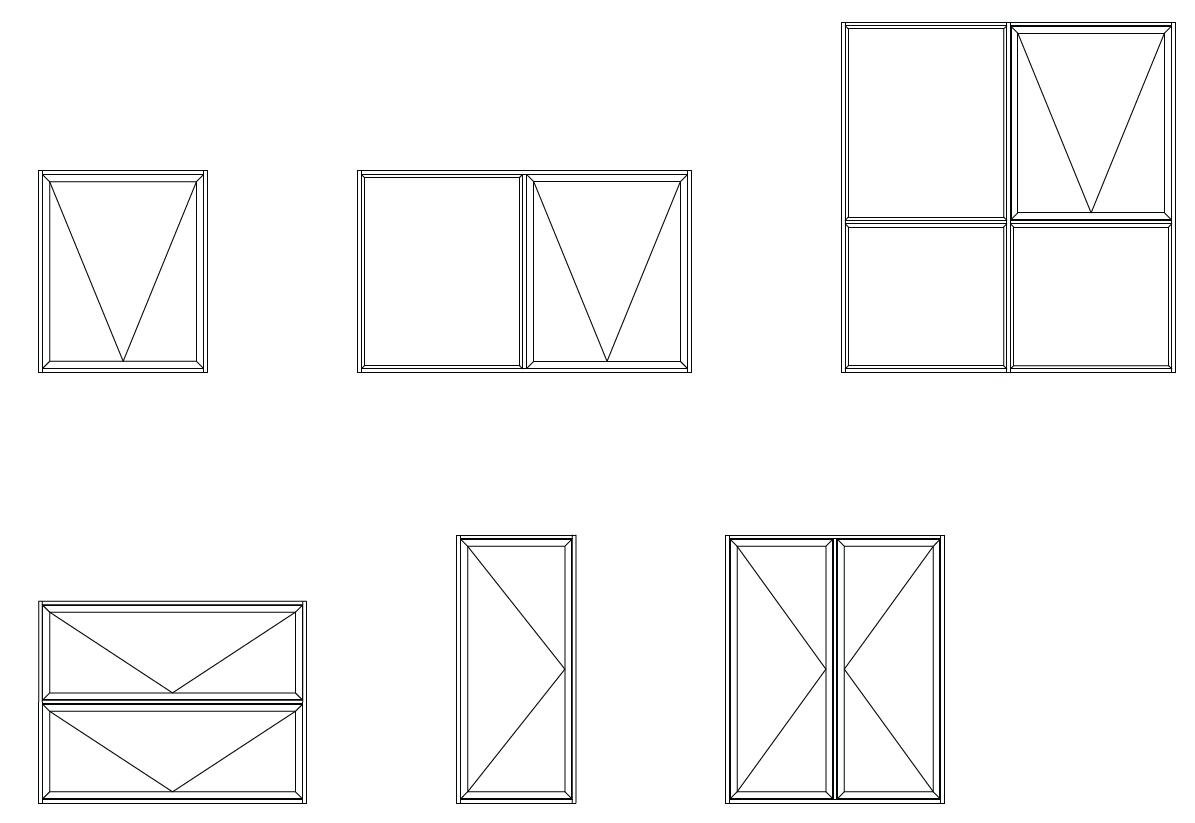

Typical Configurations
