Vision-Gard

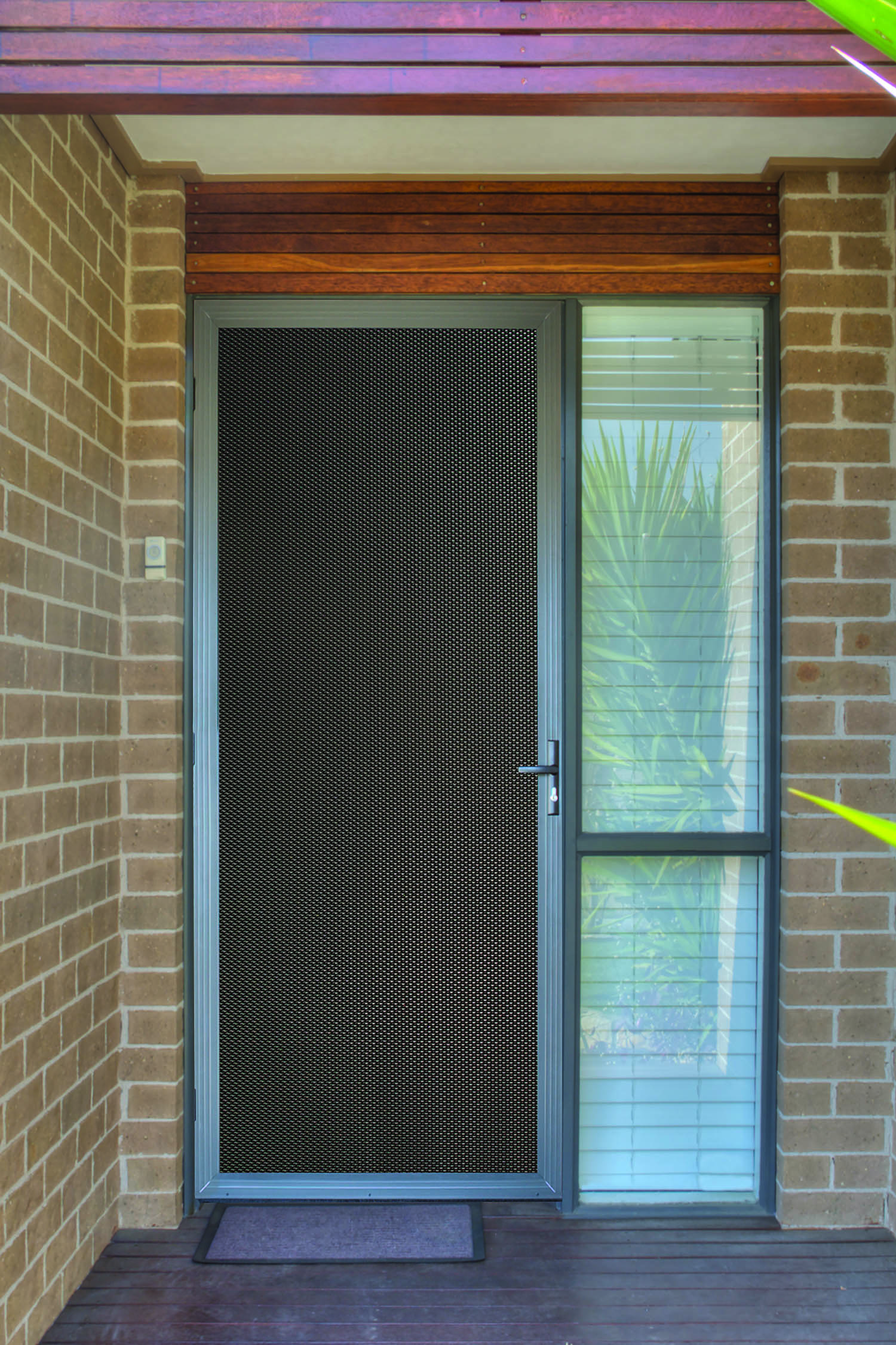

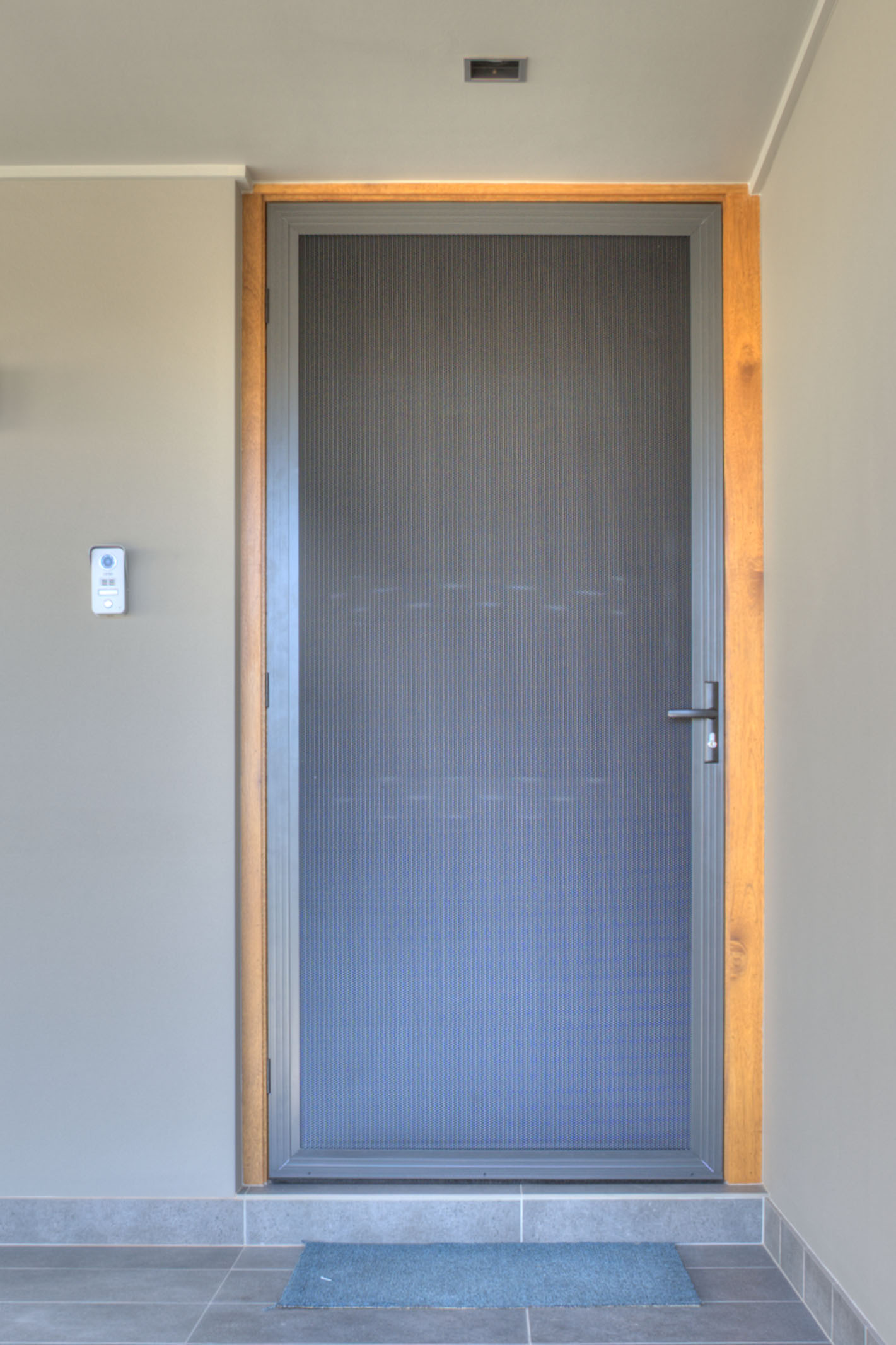

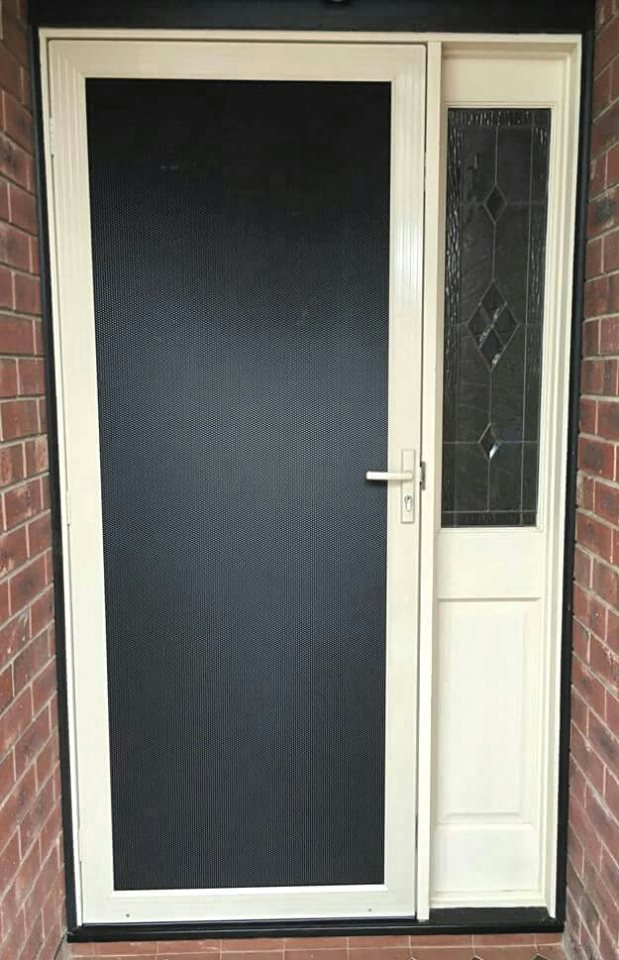

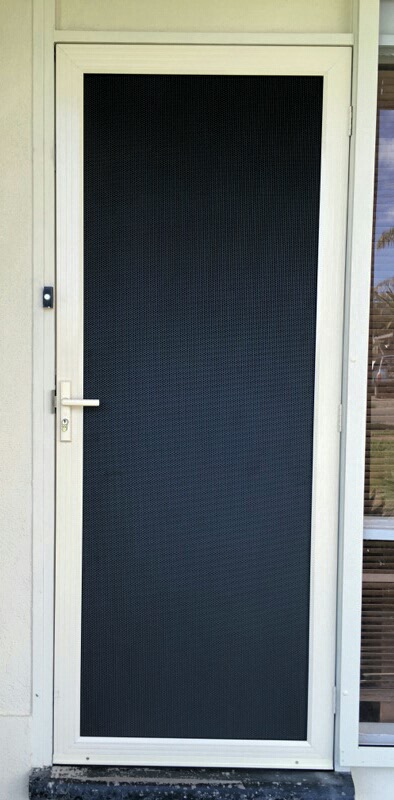

Vision-Gard screens secure your home and provide security, privacy and strength, as well as being corrosion resistant and looking great.

Tested and Compliant Solutions

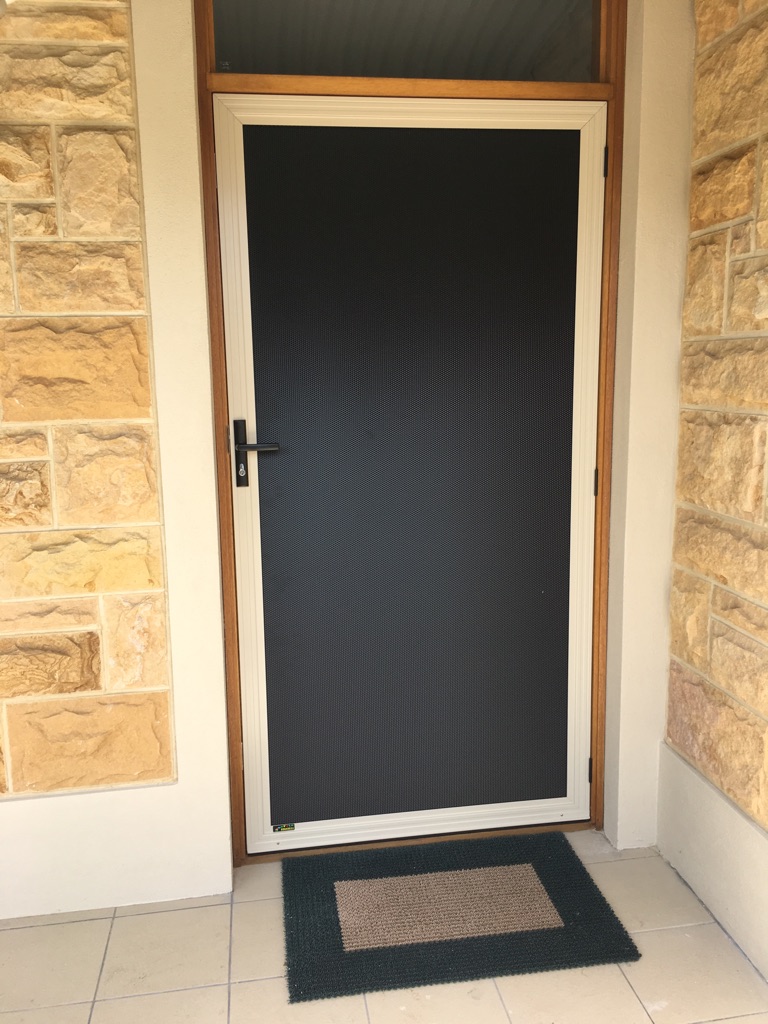

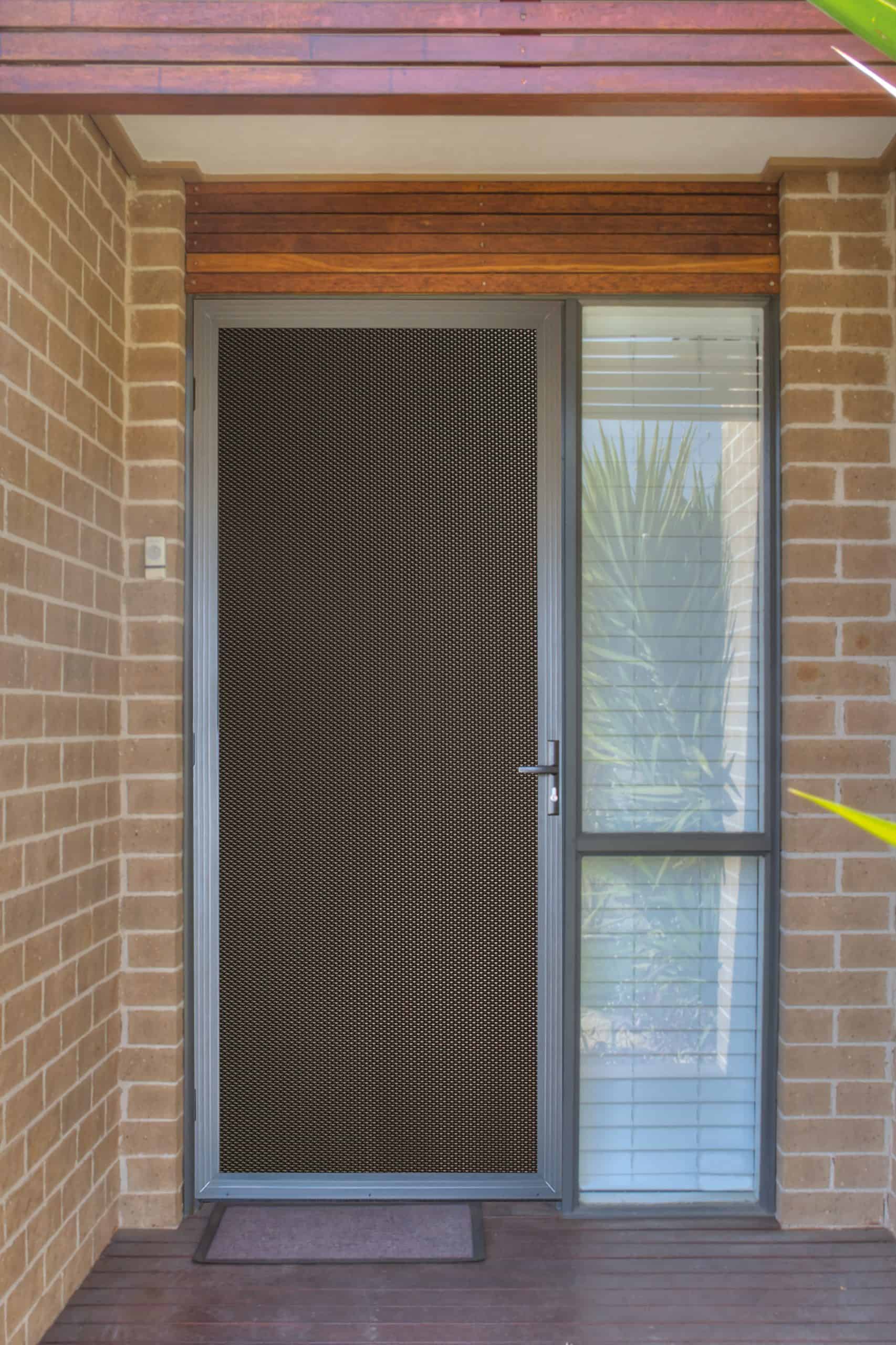

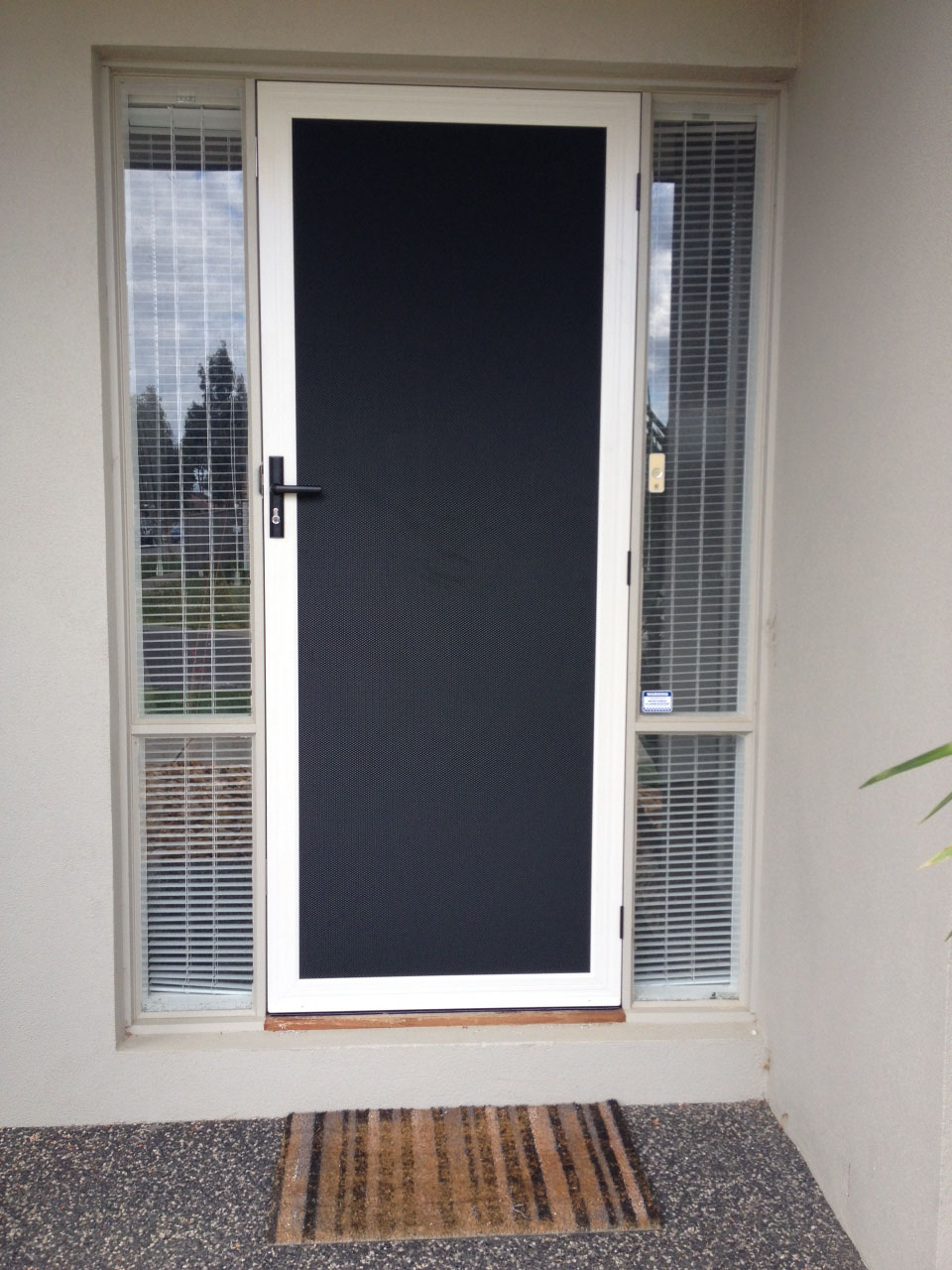

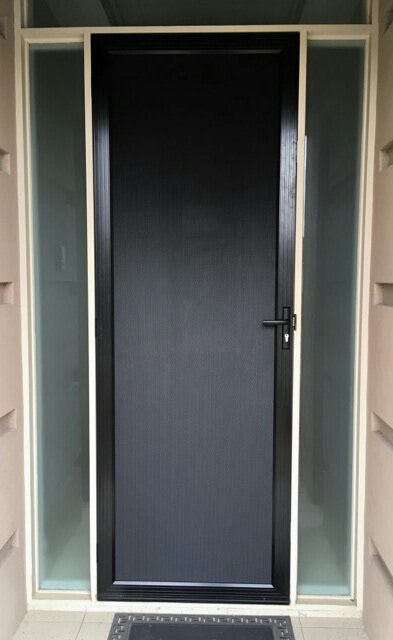

Vision-Gard Screens are a new addition to the Alspec® range of screening options. Vision-Gard screens not only secure your home but also provide a degree of privacy from people outside your home looking in. Vision-Gard screens provide security, privacy and strength, as well as being corrosion resistant and looking great.

Vision-Gard Design

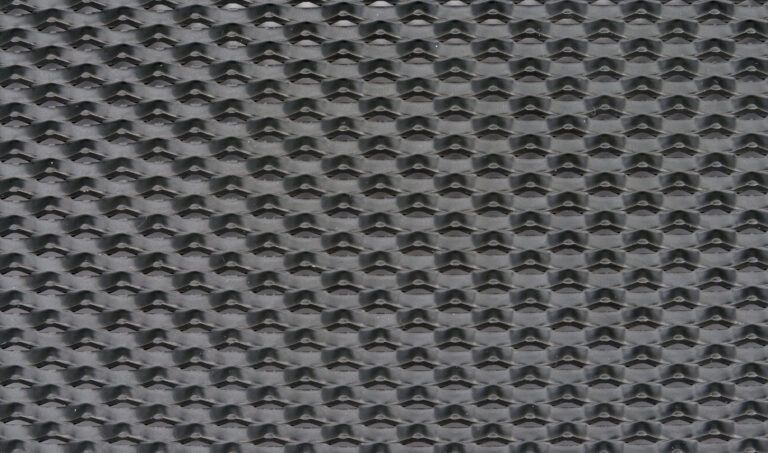

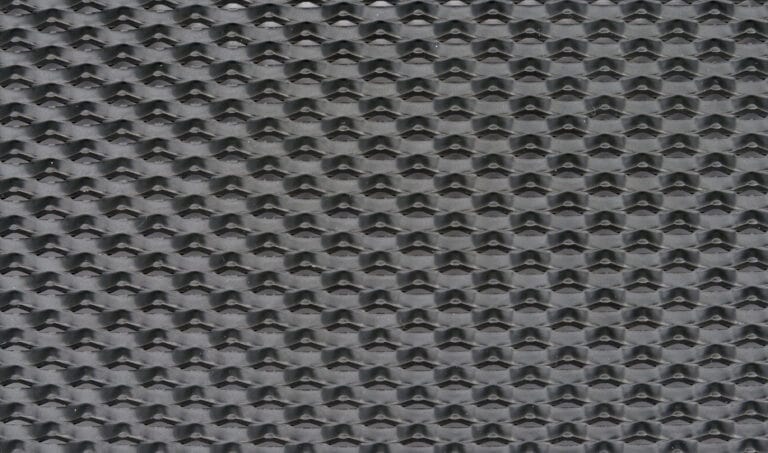

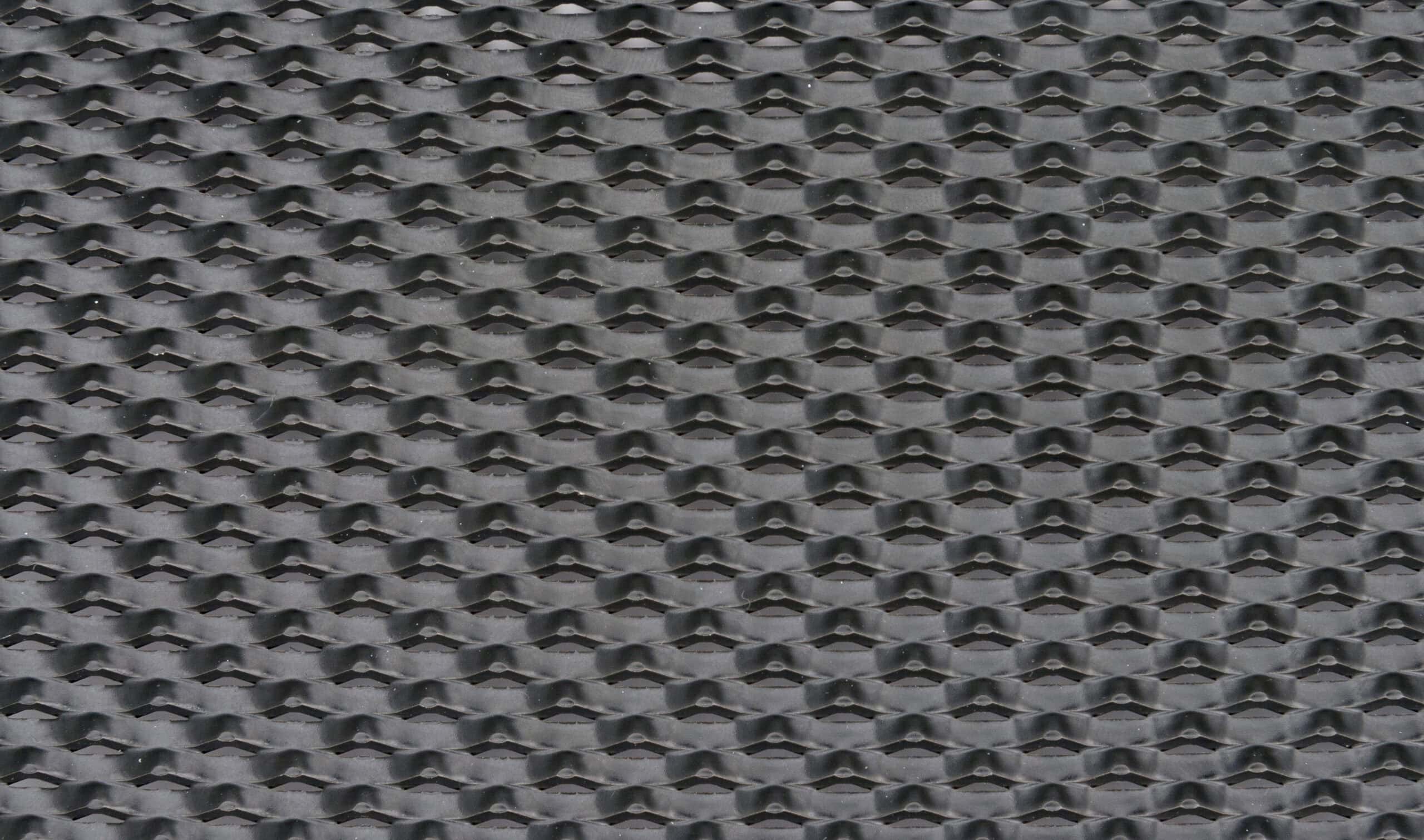

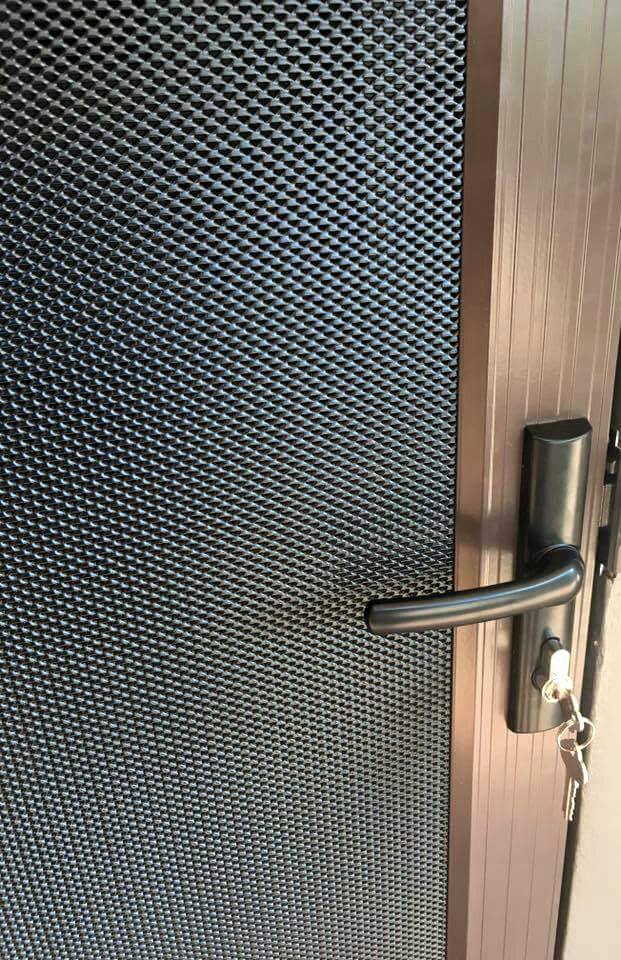

Vision-Gard Screens utilise a strong (1.6mm thick) aluminium sheet that is perforated and powder coated in Australia to exacting standards. This mesh works by limiting the field of vision for people on the outside looking in.

Vision-Gard works if there is correct lighting allowing a person on the inside to see outside and not be seen from the visitor’s side.

The mesh has two options for retaining in the frame:

  1. Retention with our bespoke Wedge PVC pressure retention system.
  2. Retention using rivets into a frame with a covering strip to conceal the rivets.

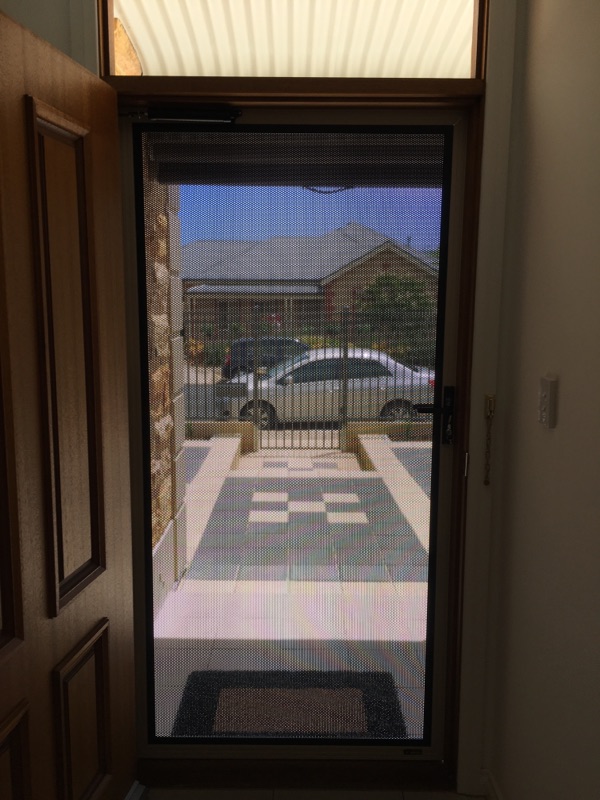

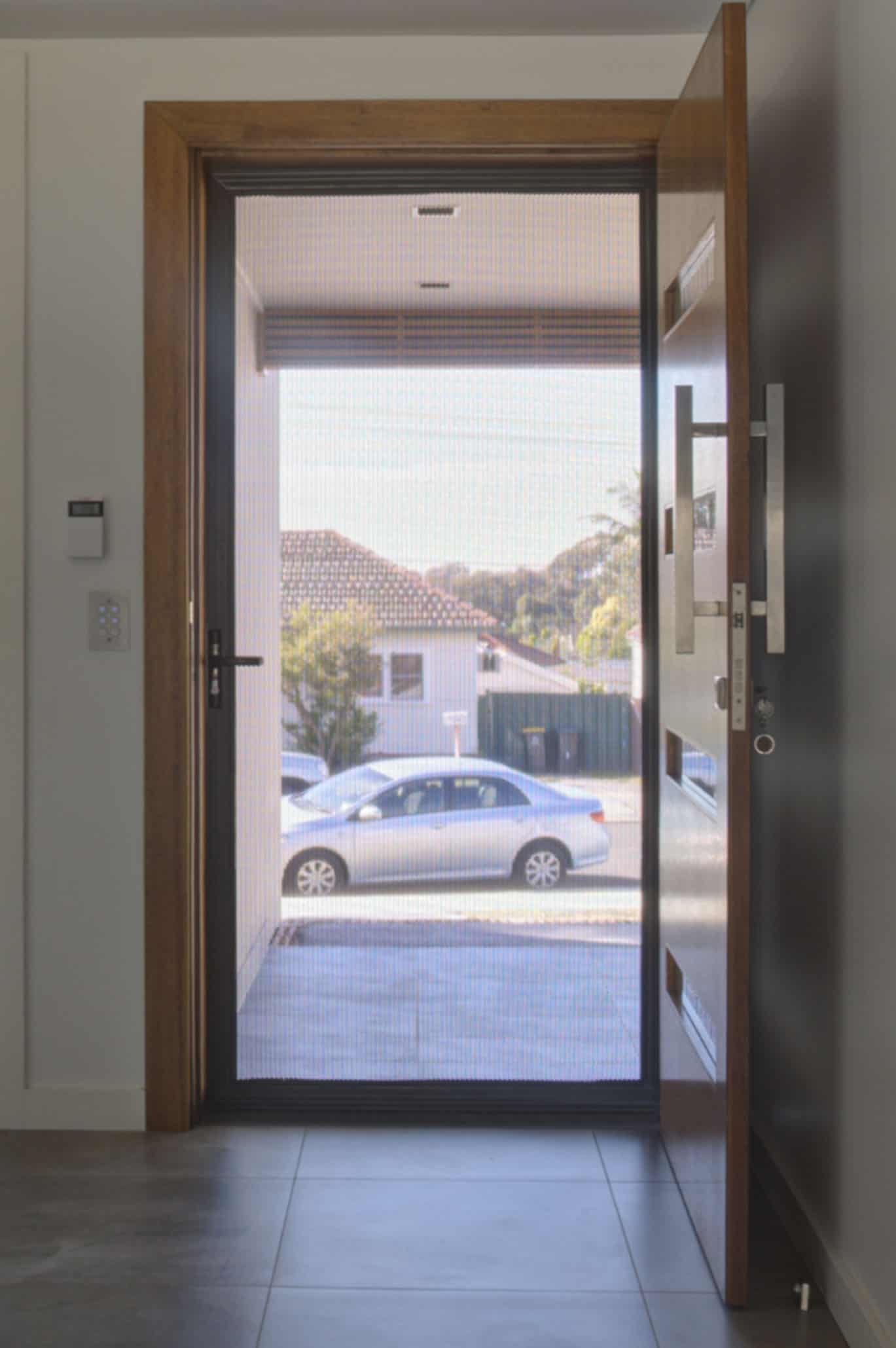

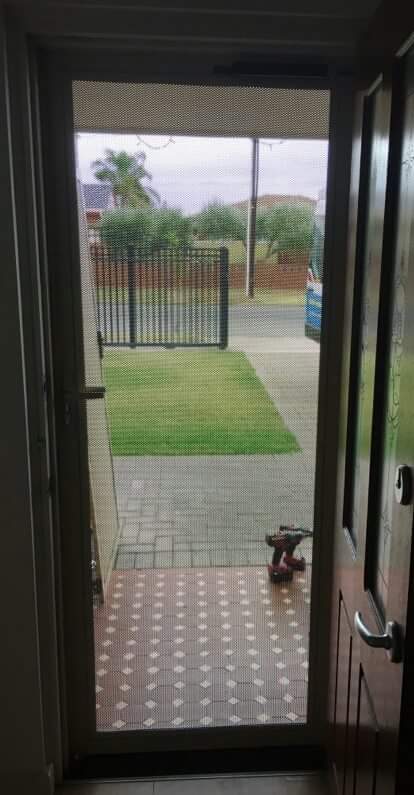

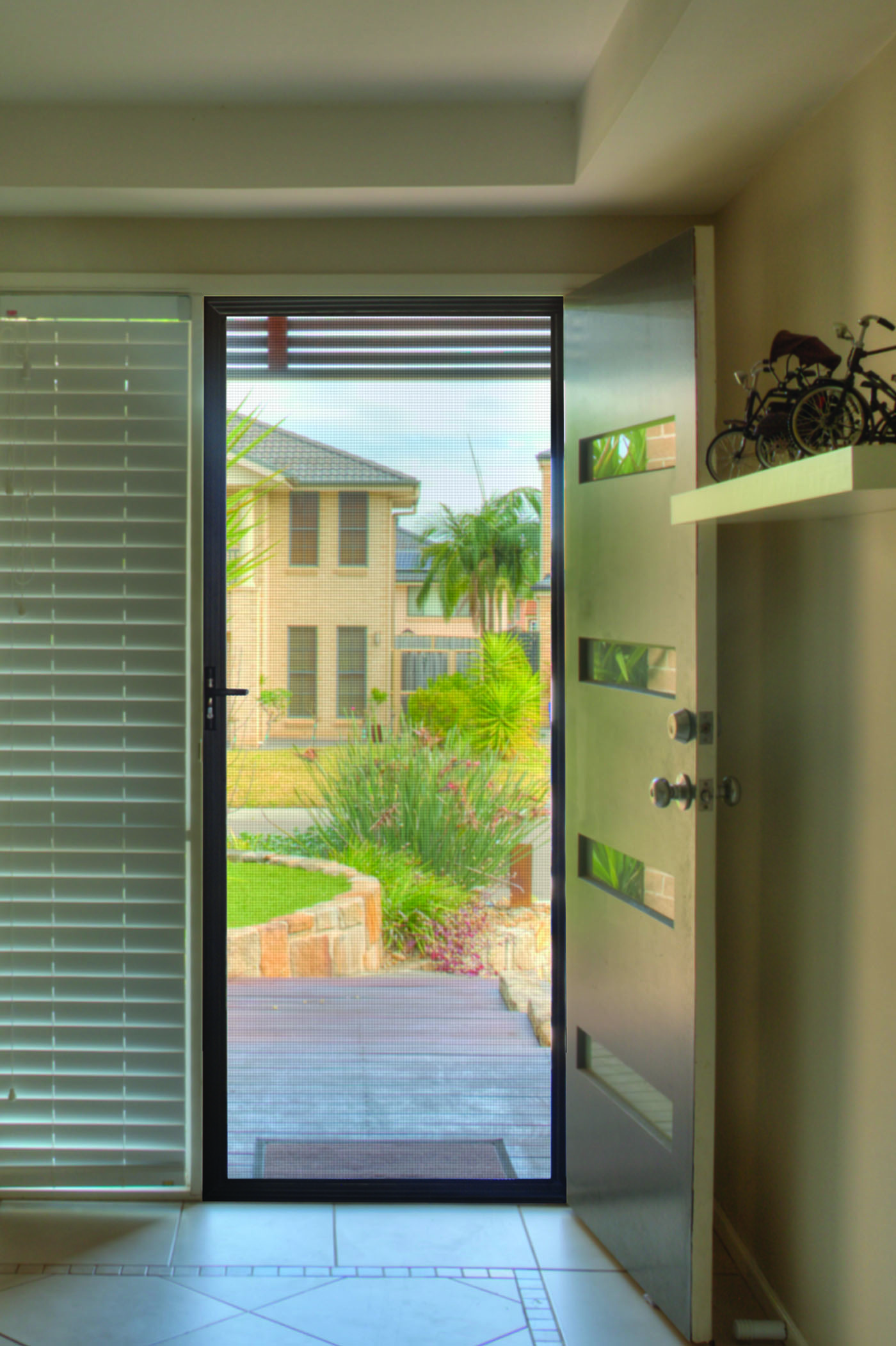

The resulting screen is strong, extremely resistant to corrosion and provides excellent clarity of vision from the inside looking out.

The Complete Range

Alspec® now offers the complete range of screening systems from our top of the range Invisi-Gard® 316 Stainless Steel Security Screens, through to Alu-Gard®, Federation Cast Panels®, Alu-Grille® Diamond Grilles, Vision-Gard one way vision security screen, fibreglass and aluminium insect screen and all the associated accessories. For a history of great service and quality built products when considering an aluminium screen door system, there’s only one place that has all the solutions – Alspec®.



Key Features

  • Reduces the vision into the home.
  • Clarity of vision from the inside.
  • High corrosion resistance.
  • Aperture of less than 2mm meets bushfire requirements up to BAL-29.
  • Tested and passed Australian Standards.
  • Choice of retention systems.
  • Manufactured in Australia.
  • Part of a wide range of security and screening solutions.

Technical Specifications

Specifications

Material Grade 5005 H34
Thickness 3mm
Paint Dulux Black Matt
% Open Area 17%
Aperture 1mm x 4mm

Tested Performance

Security
Australian Standard AS5041 - 2003 Methods of Test - Security Screen Doors and Window Grilles

Tested Performance

Child Fall Protection
Australian Standard AS5203 - 2016 Protection of Openable Windows/Fall Prevention - Test Sequence & Compliance Method
Fire Attenuation
Australian Standard AS1530.4 - 2014 Appendix B7
